pte.h File Reference

#include "threads/vaddr.h"

Include dependency graph for pte.h:

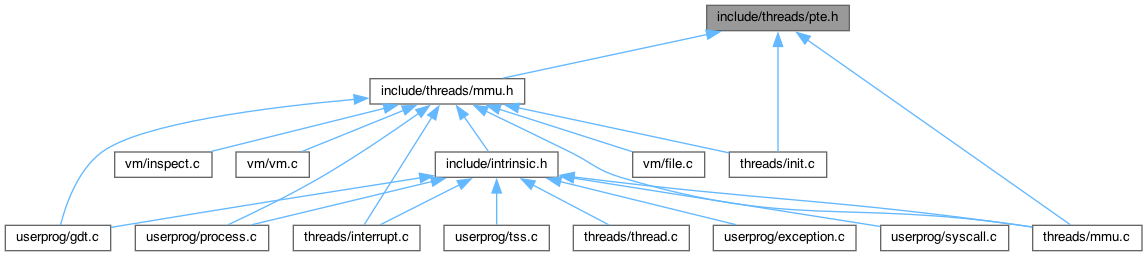

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	PML4SHIFT   39UL
#define	PDPESHIFT   30UL
#define	PDXSHIFT   21UL
#define	PTXSHIFT   12UL
#define	PML4(la)   ((((uint64_t) (la)) >> PML4SHIFT) & 0x1FF)
#define	PDPE(la)   ((((uint64_t) (la)) >> PDPESHIFT) & 0x1FF)
#define	PDX(la)   ((((uint64_t) (la)) >> PDXSHIFT) & 0x1FF)
#define	PTX(la)   ((((uint64_t) (la)) >> PTXSHIFT) & 0x1FF)
#define	PTE_ADDR(pte)   ((uint64_t) (pte) & ~0xFFF)
#define	PTE_FLAGS   0x00000000000000fffUL /* Flag bits. */
#define	PTE_ADDR_MASK   0xffffffffffffff000UL /* Address bits. */
#define	PTE_AVL   0x00000e00 /* Bits available for OS use. */
#define	PTE_P   0x1 /* 1=present, 0=not present. */
#define	PTE_W   0x2 /* 1=read/write, 0=read-only. */
#define	PTE_U   0x4 /* 1=user/kernel, 0=kernel only. */
#define	PTE_A   0x20 /* 1=accessed, 0=not acccessed. */
#define	PTE_D   0x40 /* 1=dirty, 0=not dirty (PTEs only). */

Macro Definition Documentation

PDPE

#define PDPE

(

la

)

((((uint64_t) (la)) >> PDPESHIFT) & 0x1FF)

PDPESHIFT

#define PDPESHIFT   30UL

PDX

#define PDX

(

la

)

((((uint64_t) (la)) >> PDXSHIFT) & 0x1FF)

PDXSHIFT

#define PDXSHIFT   21UL

PML4

#define PML4

(

la

)

((((uint64_t) (la)) >> PML4SHIFT) & 0x1FF)

PML4SHIFT

#define PML4SHIFT   39UL

PTE_A

#define PTE_A   0x20 /* 1=accessed, 0=not acccessed. */

PTE_ADDR

#define PTE_ADDR

(

pte

)

((uint64_t) (pte) & ~0xFFF)

PTE_ADDR_MASK

#define PTE_ADDR_MASK   0xffffffffffffff000UL /* Address bits. */

PTE_AVL

#define PTE_AVL   0x00000e00 /* Bits available for OS use. */

PTE_D

#define PTE_D   0x40 /* 1=dirty, 0=not dirty (PTEs only). */

PTE_FLAGS

#define PTE_FLAGS   0x00000000000000fffUL /* Flag bits. */

PTE_P

#define PTE_P   0x1 /* 1=present, 0=not present. */

PTE_U

#define PTE_U   0x4 /* 1=user/kernel, 0=kernel only. */

PTE_W

#define PTE_W   0x2 /* 1=read/write, 0=read-only. */

PTX

#define PTX

(

la

)

((((uint64_t) (la)) >> PTXSHIFT) & 0x1FF)

PTXSHIFT

#define PTXSHIFT   12UL
