process.c File Reference

#include "userprog/process.h"
#include <debug.h>
#include <inttypes.h>
#include <round.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "userprog/gdt.h"
#include "userprog/tss.h"
#include "filesys/directory.h"
#include "filesys/file.h"
#include "filesys/filesys.h"
#include "threads/flags.h"
#include "threads/init.h"
#include "threads/interrupt.h"
#include "threads/palloc.h"
#include "threads/thread.h"
#include "threads/mmu.h"
#include "threads/vaddr.h"
#include "intrinsic.h"
#include "lib/user/syscall.h"

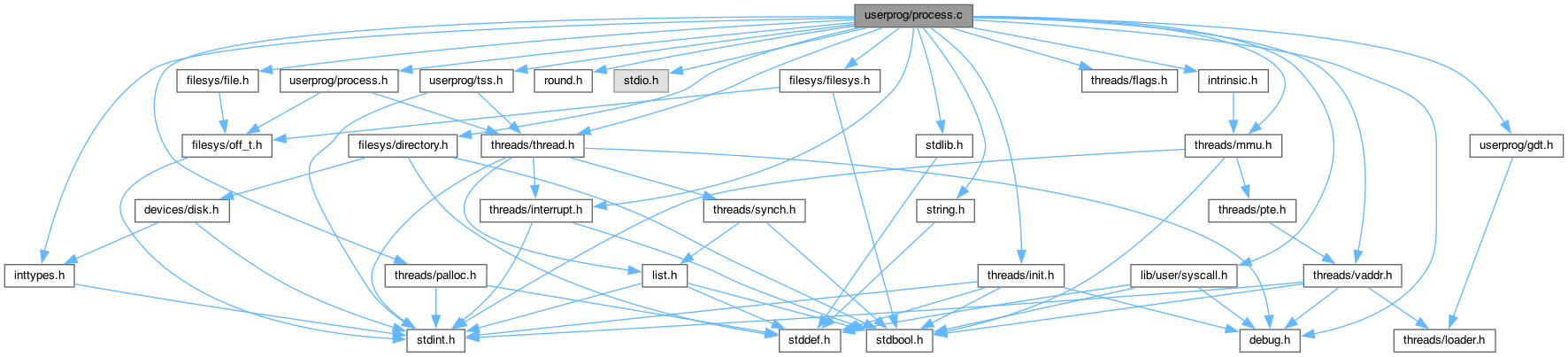

Include dependency graph for process.c:

Classes
struct	ELF64_hdr
struct	ELF64_PHDR

Macros
#define	EI_NIDENT   16
#define	PT_NULL   0 /* Ignore. */
#define	PT_LOAD   1 /* Loadable segment. */
#define	PT_DYNAMIC   2 /* Dynamic linking info. */
#define	PT_INTERP   3 /* Name of dynamic loader. */
#define	PT_NOTE   4 /* Auxiliary info. */
#define	PT_SHLIB   5 /* Reserved. */
#define	PT_PHDR   6 /* Program header table. */
#define	PT_STACK   0x6474e551 /* Stack segment. */
#define	PF_X   1 /* Executable. */
#define	PF_W   2 /* Writable. */
#define	PF_R   4 /* Readable. */
#define	ELF   ELF64_hdr
#define	Phdr   ELF64_PHDR

Functions
static void	process_cleanup (void)
static bool	load (const char *file_name, struct intr_frame *if_)
static void	initd (void *f_name)
static void	__do_fork (void *)
static void	argument_parse (char *file_name, int *argc_ptr, char *argv[])
static void	argument_stack (int argc, char **argv, struct intr_frame *if_)
struct thread *	get_child_process (int pid)
static void	process_init (void)
tid_t	process_create_initd (const char *file_name)
tid_t	process_fork (const char *name, struct intr_frame *if_ UNUSED)
static bool	duplicate_pte (uint64_t *pte, void *va, void *aux)
int	process_exec (void *f_name)
int	process_wait (tid_t child_tid UNUSED)
void	process_exit (void)
void	process_activate (struct thread *next)
bool	setup_stack (struct intr_frame *if_)
static bool	validate_segment (const struct Phdr *, struct file *)
static bool	load_segment (struct file *file, off_t ofs, uint8_t *upage, uint32_t read_bytes, uint32_t zero_bytes, bool writable)
static bool	install_page (void *upage, void *kpage, bool writable)

Macro Definition Documentation

EI_NIDENT

#define EI_NIDENT   16

ELF

#define ELF   ELF64_hdr

PF_R

#define PF_R   4 /* Readable. */

PF_W

#define PF_W   2 /* Writable. */

PF_X

#define PF_X   1 /* Executable. */

Phdr

#define Phdr   ELF64_PHDR

PT_DYNAMIC

#define PT_DYNAMIC   2 /* Dynamic linking info. */

PT_INTERP

#define PT_INTERP   3 /* Name of dynamic loader. */

PT_LOAD

#define PT_LOAD   1 /* Loadable segment. */

PT_NOTE

#define PT_NOTE   4 /* Auxiliary info. */

PT_NULL

#define PT_NULL   0 /* Ignore. */

PT_PHDR

#define PT_PHDR   6 /* Program header table. */

PT_SHLIB

#define PT_SHLIB   5 /* Reserved. */

PT_STACK

#define PT_STACK   0x6474e551 /* Stack segment. */

Function Documentation

__do_fork()

static void __do_fork ( void *  aux )

static

                      {
    struct intr_frame if_;
    struct thread *parent = (struct thread *) aux; // 부모 프로세스
    struct thread *current = thread_current (); // 새로 생성된 자식 프로세스
    /* TODO: somehow pass the parent_if. (i.e. process_fork()'s if_) */
    /* TODO: process_fork의 두 번째 인자인 parent_if를 전달한다. */
    struct intr_frame *parent_if;
    bool succ = true;

    parent_if = &parent->parent_if; // process_fork에서 복사 해두었던 intr_frame
    /* 1. Read the cpu context to local stack. */
    /* 1. 부모의 인터럽트 프레임을 읽어온다.(if_로 복사) */
    memcpy (&if_, parent_if, sizeof (struct intr_frame));

    if_.R.rax = 0; // fork 시스템 콜의 결과로 자식 프로세스는 0을 리턴해야하므로 0을 넣어준다.

    /* 2. Duplicate PT */
    /* 2. 페이지 테이블을 복제한다. */
    current->pml4 = pml4_create(); // 부모의 pte를 복사하기 위해 페이지 테이블을 생성한다.
    if (current->pml4 == NULL)
        goto error;

    process_activate (current);
#ifdef VM
    supplemental_page_table_init (&current->spt);
    if (!supplemental_page_table_copy (&current->spt, &parent->spt))
        goto error;
#else
    // "pml4_for_each" : Apply FUNC to each available pte entries including kernel's.
    if (!pml4_for_each (parent->pml4, duplicate_pte, parent)) // "duplicate_pte" : 페이지 테이블을 복제하는 함수(부모 -> 자식)
        goto error;
#endif

    /* TODO: Your code goes here.
     * TODO: Hint) To duplicate the file object, use `file_duplicate`
     * TODO:       in include/filesys/file.h. Note that parent should not return
     * TODO:       from the fork() until this function successfully duplicates
     * TODO:       the resources of parent.*/
    /*
     * 파일 객체를 복제하려면 'file_duplicate'를 사용하라.
     * 이 함수가 부모의 리소스를 성공적으로 복제할 때까지 부모 프로세스는 fork로 부터 리턴할 수 없다.
    */
    if (parent->next_fd == FDCOUNT_LIMIT)
        goto error;

    // 부모의 fdt를 자식의 fdt로 복사한다.
    for (int fd = 2; fd < FDCOUNT_LIMIT; fd++) {
        struct file *file = parent->fdt[fd];
        if (file == NULL) // fd엔트리가 없는 상태에는 그냥 건너뛴다.
            continue;
        current->fdt[fd] = file_duplicate (file);
    }

    current->next_fd = parent->next_fd; // 부모의 next_fd를 자식의 next_fd로 옮겨준다.
    sema_up(&current->fork_sema); // fork가 정상적으로 완료되었으므로 현재 wait중인 parent를 다시 실행 가능 상태로 만든다.

    /* Finally, switch to the newly created process. */
    /* 새로 생성된 프로세스에 대해 컨텍스트 스위치를 수행한다. */
    if (succ)
        do_iret (&if_);
error: // 제대로 복제가 안된 상태 - TID_ERROR 리턴
    sema_up(&current->fork_sema);
    exit(TID_ERROR);
    // thread_exit ();
}

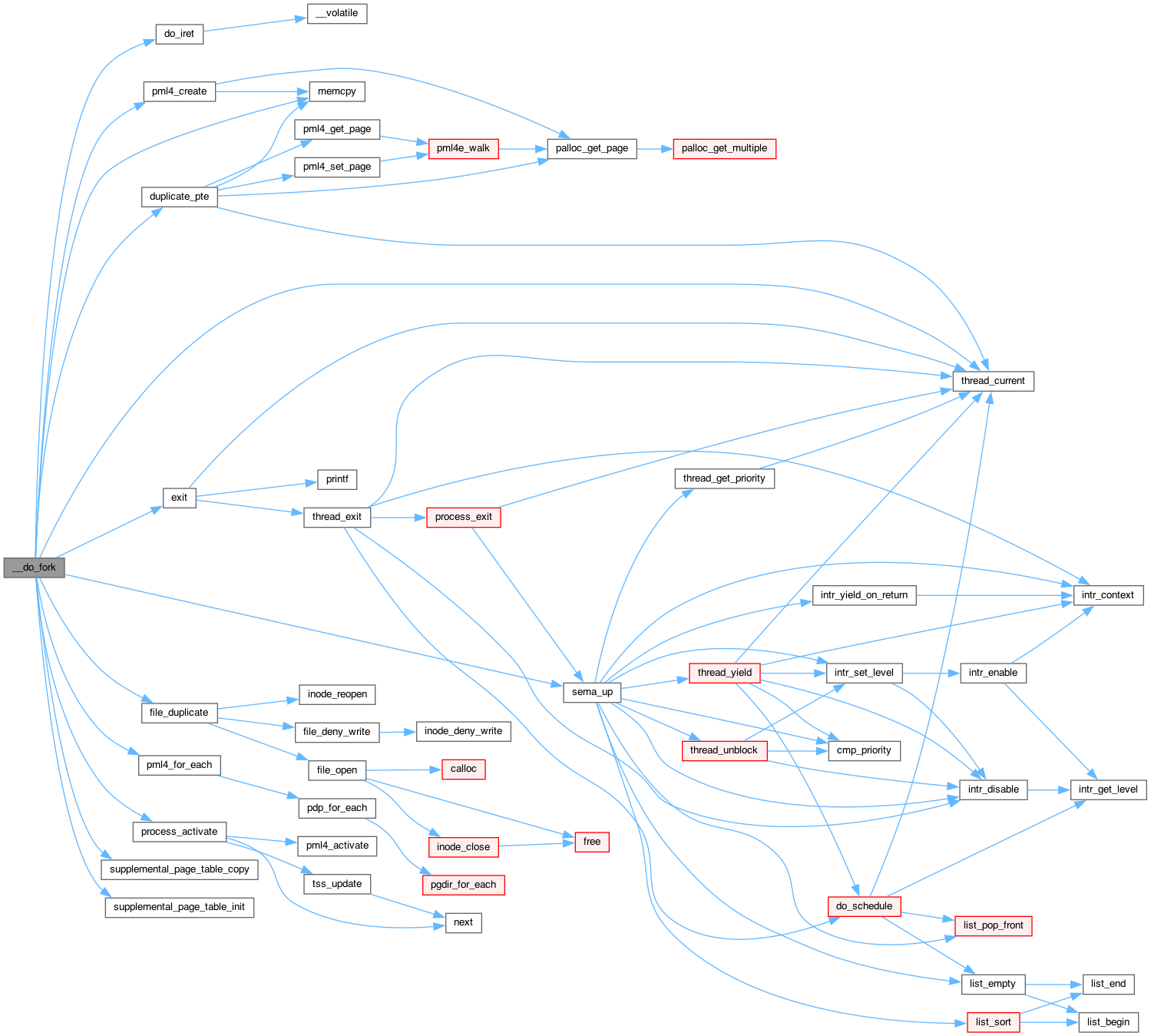

Here is the call graph for this function:

Here is the caller graph for this function:

argument_parse()

static void argument_parse ( char *  file_name, int *  argc_ptr, char *  argv[]  )

static

                                                                        {
    char *token, *save_ptr;

    for (token = strtok_r(file_name, " ", &save_ptr); token != NULL; token = strtok_r (NULL, " ", &save_ptr))
        argv[(*argc_ptr)++] = token;

    argv[*argc_ptr] = token;
}

Here is the call graph for this function:

Here is the caller graph for this function:

argument_stack()

static void argument_stack ( int  argc, char **  argv, struct intr_frame *  if_  )

static

                                                                         {
    char *argv_addr[128];
    for (int i = argc - 1; i >= 0; i--){ // argument
        if_->rsp -= strlen(argv[i]) + 1;
        // if_->rsp = argv[i];
        memcpy(if_->rsp, argv[i], strlen(argv[i]) + 1); // *(if_->rsp) = *argv[1]; 'if_->rsp'의 크기를 몰라서 이렇게 하면 안됨
        argv_addr[i] = if_->rsp;
    }

    while (if_->rsp % 8 > 0){ // word-aline padding
        if_->rsp -= 1;
        memset(if_->rsp, 0, 1);
    }

    if_->rsp -= sizeof(char *);
    memset(if_->rsp, 0, sizeof(char *));

    for (int i = argc - 1; i >= 0; i--){
        if_->rsp -= sizeof(char *);
        // if_->rsp = argv_addr[i];
        memcpy(if_->rsp, &argv_addr[i], sizeof(char *));
    }

    if_->rsp -= sizeof(char *);
    memset(if_->rsp, 0, sizeof(char *));

    if_->R.rdi = argc;
    if_->R.rsi = if_->rsp + 8;
}

Here is the call graph for this function:

Here is the caller graph for this function:

duplicate_pte()

static bool duplicate_pte ( uint64_t *  pte, void *  va, void *  aux  )

static

                                                   {
    struct thread *current = thread_current ();
    struct thread *parent = (struct thread *) aux;
    void *parent_page;
    void *newpage;
    bool writable;

    /* 1. TODO: If the parent_page is kernel page, then return immediately. */
    if (is_kernel_vaddr(va))
    {
        return true;
    }
    /* 2. Resolve VA from the parent's page map level 4. */
    parent_page = pml4_get_page (parent->pml4, va);

    if (parent_page == NULL)
    {
        return false;
    }

    /* 3. TODO: Allocate new PAL_USER page for the child and set result to
     *    TODO: NEWPAGE. */

    newpage = palloc_get_page(PAL_USER);
    if (newpage == NULL)
    {
        return false;
    }

    /* 4. TODO: Duplicate parent's page to the new page and
     *    TODO: check whether parent's page is writable or not (set WRITABLE
     *    TODO: according to the result). */
    memcpy(newpage,parent_page, PGSIZE);
    writable = is_writable(pte);

    /* 5. Add new page to child's page table at address VA with WRITABLE
     *    permission. */
    if (!pml4_set_page (current->pml4, va, newpage, writable)) {
        /* 6. TODO: if fail to insert page, do error handling. */
        return false;
    }
    return true;
}

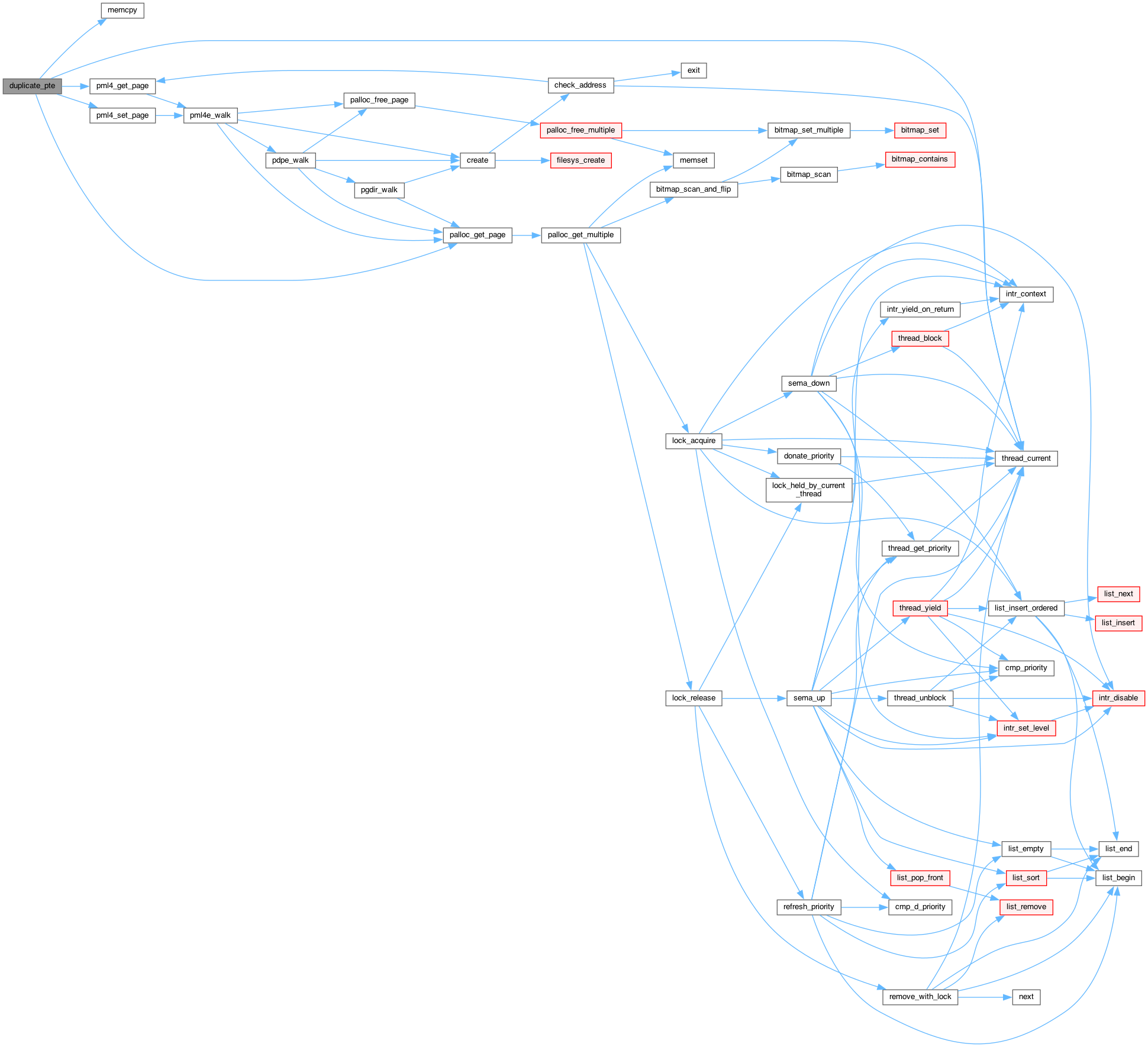

Here is the call graph for this function:

Here is the caller graph for this function:

get_child_process()

struct thread * get_child_process

(

int

pid

)

                                         {
    struct thread *curr = thread_current();
    struct list *child_list = &curr->child_list;

    // 자식 리스트를 순회하면서 프로세스 디스크립터 검색
    for (struct list_elem *e = list_begin(child_list); e != list_end(child_list); e = list_next(e))
    {
        struct thread *t = list_entry(e, struct thread, child_elem);
        if (t->tid == pid) // 해당 pid가 존재하면 프로세스 디스크립터 리턴
            return t;
    }
    return NULL; // 리스트에 존재하지 않으면 NULL
}

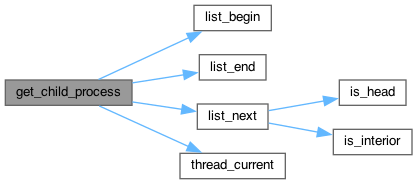

Here is the call graph for this function:

Here is the caller graph for this function:

initd()

static void initd ( void *  f_name )

static

                     {
// CHECK [process_exec -> supplemental_page_table_init]의 중복 선언으로 인한 코드 제거
#ifdef VM
    supplemental_page_table_init (&thread_current ()->spt);
#endif

    process_init ();

    if (process_exec (f_name) < 0)
        PANIC("Fail to launch initd\n");
    NOT_REACHED ();
}

Here is the call graph for this function:

Here is the caller graph for this function:

install_page()

static bool install_page ( void *  upage, void *  kpage, bool  writable  )

static

                                                       {
    struct thread *t = thread_current ();

    /* Verify that there's not already a page at that virtual
     * address, then map our page there. */
    return (pml4_get_page (t->pml4, upage) == NULL
            && pml4_set_page (t->pml4, upage, kpage, writable));
}

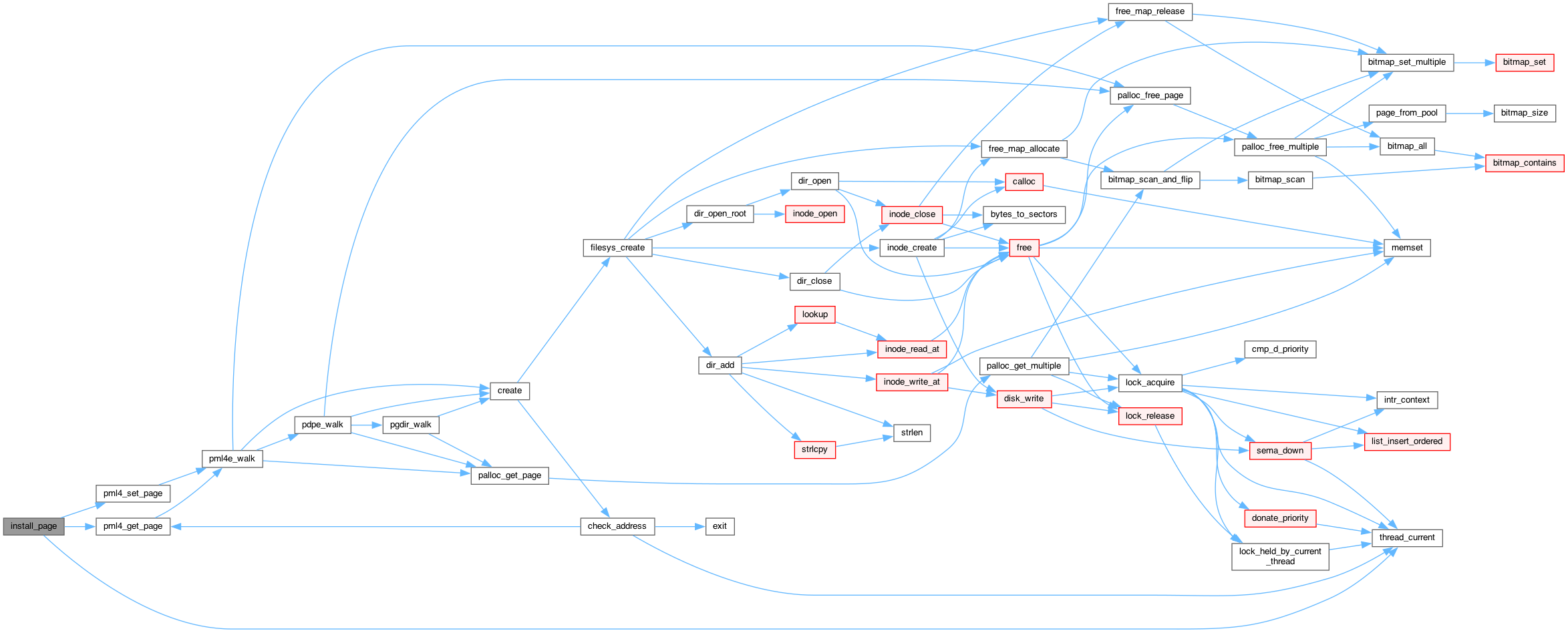

Here is the call graph for this function:

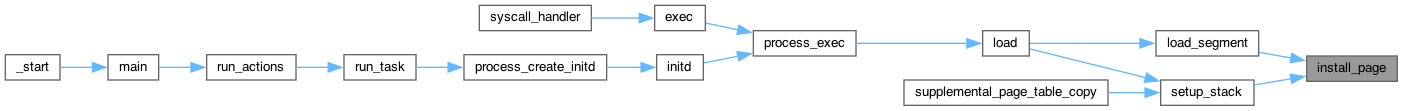

Here is the caller graph for this function:

load()

static bool load ( const char *  file_name, struct intr_frame *  if_  )

static

                                                     {
    struct thread *t = thread_current ();
    struct ELF ehdr;
    struct file *file = NULL;
    off_t file_ofs;
    bool success = false;
    int i;

    /* Allocate and activate page directory. */
    t->pml4 = pml4_create ();
    if (t->pml4 == NULL)
        goto done;
    process_activate (thread_current ());

    /* Open executable file. */
    file = filesys_open (file_name);
    if (file == NULL) {
        printf ("load: %s: open failed\n", file_name);
        goto done;
    }

    t->running = file;

    file_deny_write(file); // 현재 오픈한 파일에 접근 못하게 함

    /* Read and verify executable header. */
    if (file_read (file, &ehdr, sizeof ehdr) != sizeof ehdr
            || memcmp (ehdr.e_ident, "\177ELF\2\1\1", 7)
            || ehdr.e_type != 2
            || ehdr.e_machine != 0x3E // amd64
            || ehdr.e_version != 1
            || ehdr.e_phentsize != sizeof (struct Phdr)
            || ehdr.e_phnum > 1024) {
        printf ("load: %s: error loading executable\n", file_name);
        goto done;
    }

    /* Read program headers. */
    file_ofs = ehdr.e_phoff;
    for (i = 0; i < ehdr.e_phnum; i++) {
        struct Phdr phdr;

        if (file_ofs < 0 || file_ofs > file_length (file))
            goto done;
        file_seek (file, file_ofs);

        if (file_read (file, &phdr, sizeof phdr) != sizeof phdr)
            goto done;
        file_ofs += sizeof phdr;
        switch (phdr.p_type) {
            case PT_NULL:
            case PT_NOTE:
            case PT_PHDR:
            case PT_STACK:
            default:
                /* Ignore this segment. */
                break;
            case PT_DYNAMIC:
            case PT_INTERP:
            case PT_SHLIB:
                goto done;
            case PT_LOAD:
                if (validate_segment (&phdr, file)) {
                    bool writable = (phdr.p_flags & PF_W) != 0;
                    uint64_t file_page = phdr.p_offset & ~PGMASK;
                    uint64_t mem_page = phdr.p_vaddr & ~PGMASK;
                    uint64_t page_offset = phdr.p_vaddr & PGMASK;
                    uint32_t read_bytes, zero_bytes;
                    if (phdr.p_filesz > 0) {
                        /* Normal segment.
                         * Read initial part from disk and zero the rest. */
                        read_bytes = page_offset + phdr.p_filesz;
                        zero_bytes = (ROUND_UP (page_offset + phdr.p_memsz, PGSIZE)
                                - read_bytes);
                    } else {
                        /* Entirely zero.
                         * Don't read anything from disk. */
                        read_bytes = 0;
                        zero_bytes = ROUND_UP (page_offset + phdr.p_memsz, PGSIZE);
                    }
                    if (!load_segment (file, file_page, (void *) mem_page,
                                read_bytes, zero_bytes, writable))
                        goto done;
                }
                else
                    goto done;
                break;
        }
    }

    /* Set up stack. */
    if (!setup_stack (if_))
        goto done;

    /* Start address. */
    if_->rip = ehdr.e_entry;

    /* TODO: Your code goes here.
     * TODO: Implement argument passing (see project2/argument_passing.html). */
    /* 커맨드 라인을 파싱한다. */
    // argument_stack(argc, argv, if_->rsp, &if_);
    // argument_stack(arg_list, token_count, &if_);

    success = true;

done:
    /* We arrive here whether the load is successful or not. */
    // file_close (file);
    return success;
}

Here is the call graph for this function:

Here is the caller graph for this function:

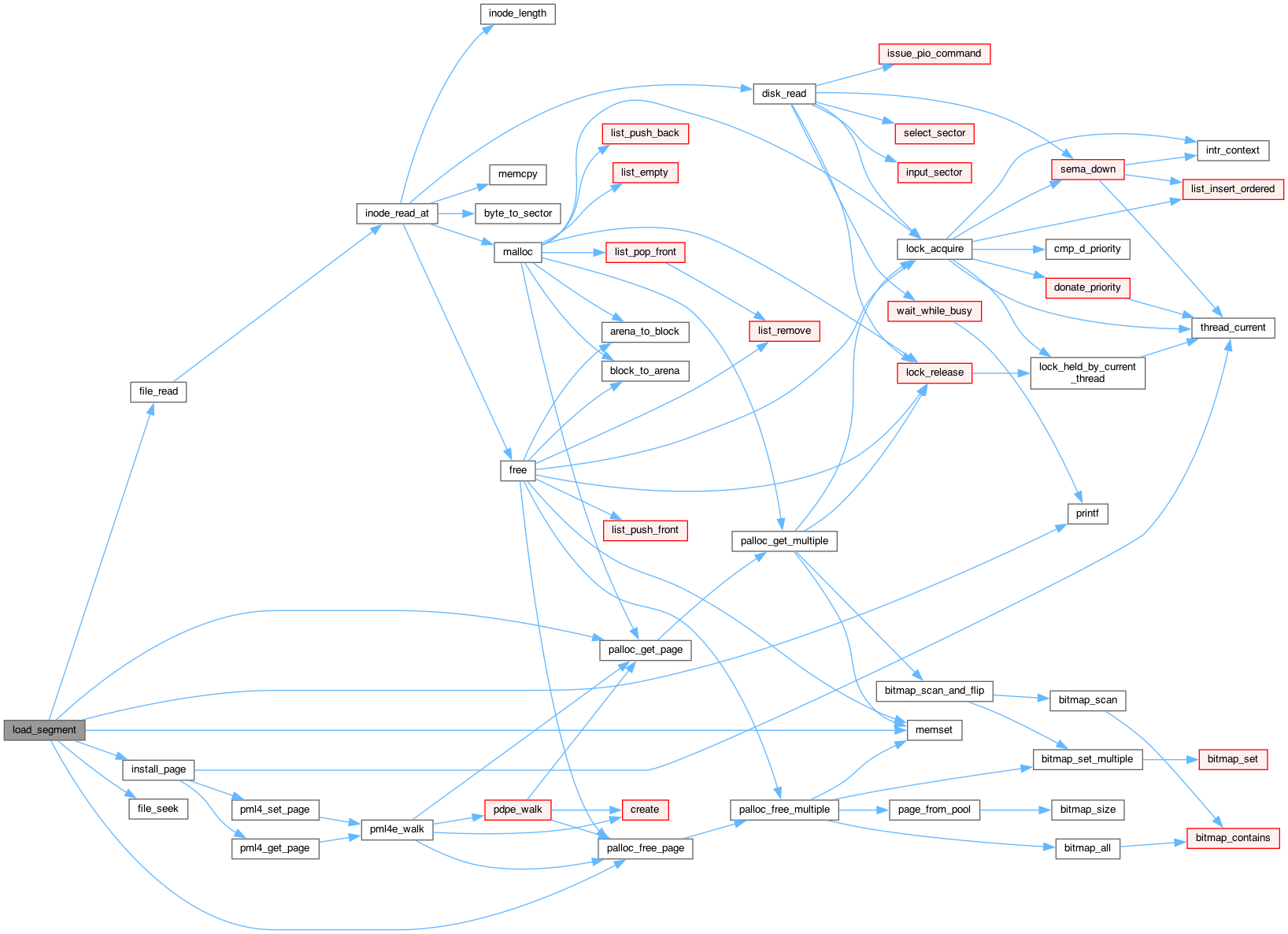

load_segment()

static bool load_segment ( struct file *  file, off_t  ofs, uint8_t *  upage, uint32_t  read_bytes, uint32_t  zero_bytes, bool  writable  )

static

                                                                 {
    ASSERT ((read_bytes + zero_bytes) % PGSIZE == 0);
    ASSERT (pg_ofs (upage) == 0);
    ASSERT (ofs % PGSIZE == 0);

    file_seek (file, ofs);
    while (read_bytes > 0 || zero_bytes > 0) {
        /* Do calculate how to fill this page.
         * We will read PAGE_READ_BYTES bytes from FILE
         * and zero the final PAGE_ZERO_BYTES bytes. */
        size_t page_read_bytes = read_bytes < PGSIZE ? read_bytes : PGSIZE;
        size_t page_zero_bytes = PGSIZE - page_read_bytes;

        /* Get a page of memory. */
        uint8_t *kpage = palloc_get_page (PAL_USER);
        if (kpage == NULL)
            return false;

        /* Load this page. */
        if (file_read (file, kpage, page_read_bytes) != (int) page_read_bytes) {
            palloc_free_page (kpage);
            return false;
        }
        memset (kpage + page_read_bytes, 0, page_zero_bytes);

        /* Add the page to the process's address space. */
        if (!install_page (upage, kpage, writable)) {
            printf("fail\n");
            palloc_free_page (kpage);
            return false;
        }

        /* Advance. */
        read_bytes -= page_read_bytes;
        zero_bytes -= page_zero_bytes;
        upage += PGSIZE;
    }
    return true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

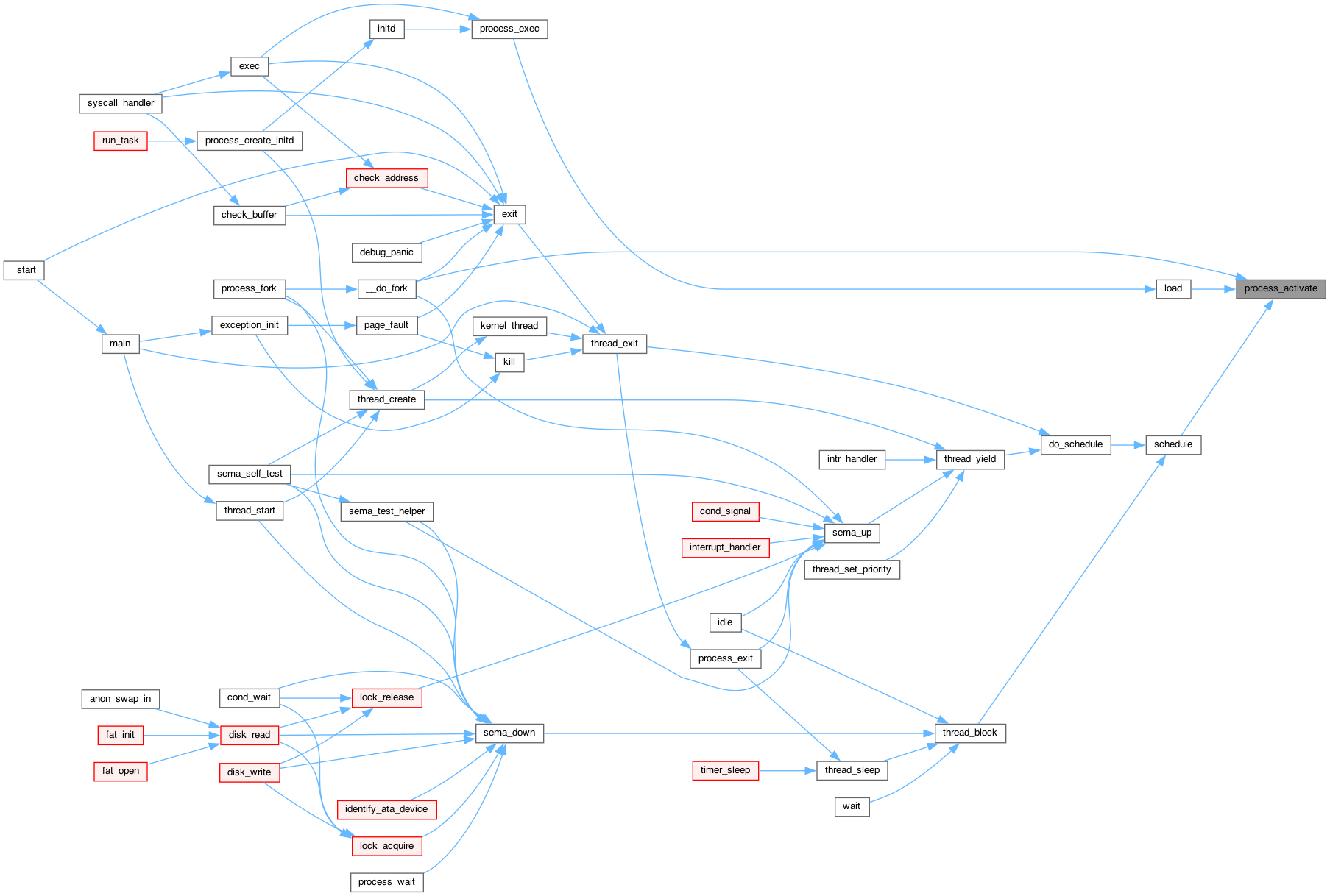

process_activate()

void process_activate

(

struct thread *

next

)

                                       {
    /* Activate thread's page tables. */
    pml4_activate (next->pml4);

    /* Set thread's kernel stack for use in processing interrupts. */
    tss_update (next);
}

Here is the call graph for this function:

Here is the caller graph for this function:

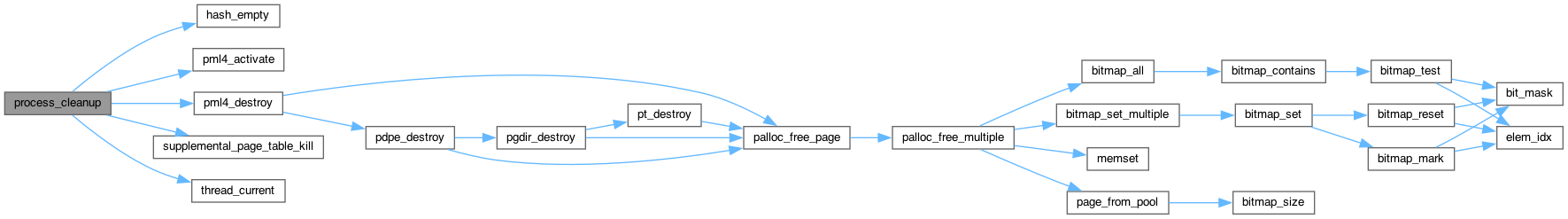

process_cleanup()

static void process_cleanup ( void  )

static

                       {
    struct thread *curr = thread_current ();

#ifdef VM
    if(!hash_empty(&curr->spt.spt_hash)) // ? threads tests all fail
        supplemental_page_table_kill (&curr->spt);
#endif

    uint64_t *pml4;
    /* Destroy the current process's page directory and switch back
     * to the kernel-only page directory. */
    pml4 = curr->pml4;
    if (pml4 != NULL) {
        /* Correct ordering here is crucial.  We must set
         * cur->pagedir to NULL before switching page directories,
         * so that a timer interrupt can't switch back to the
         * process page directory.  We must activate the base page
         * directory before destroying the process's page
         * directory, or our active page directory will be one
         * that's been freed (and cleared). */
        curr->pml4 = NULL;
        pml4_activate (NULL);
        pml4_destroy (pml4);
    }
}

Here is the call graph for this function:

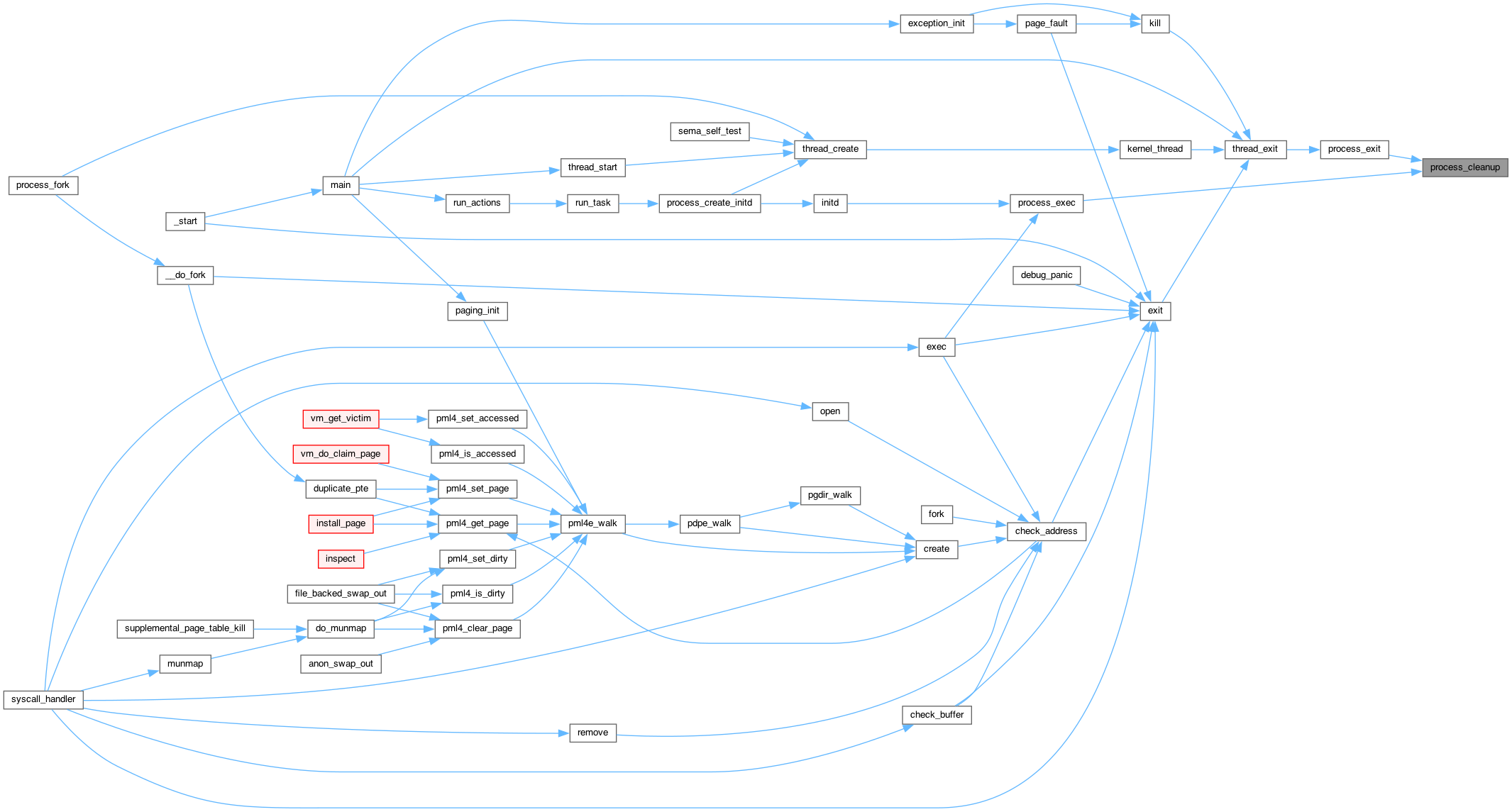

Here is the caller graph for this function:

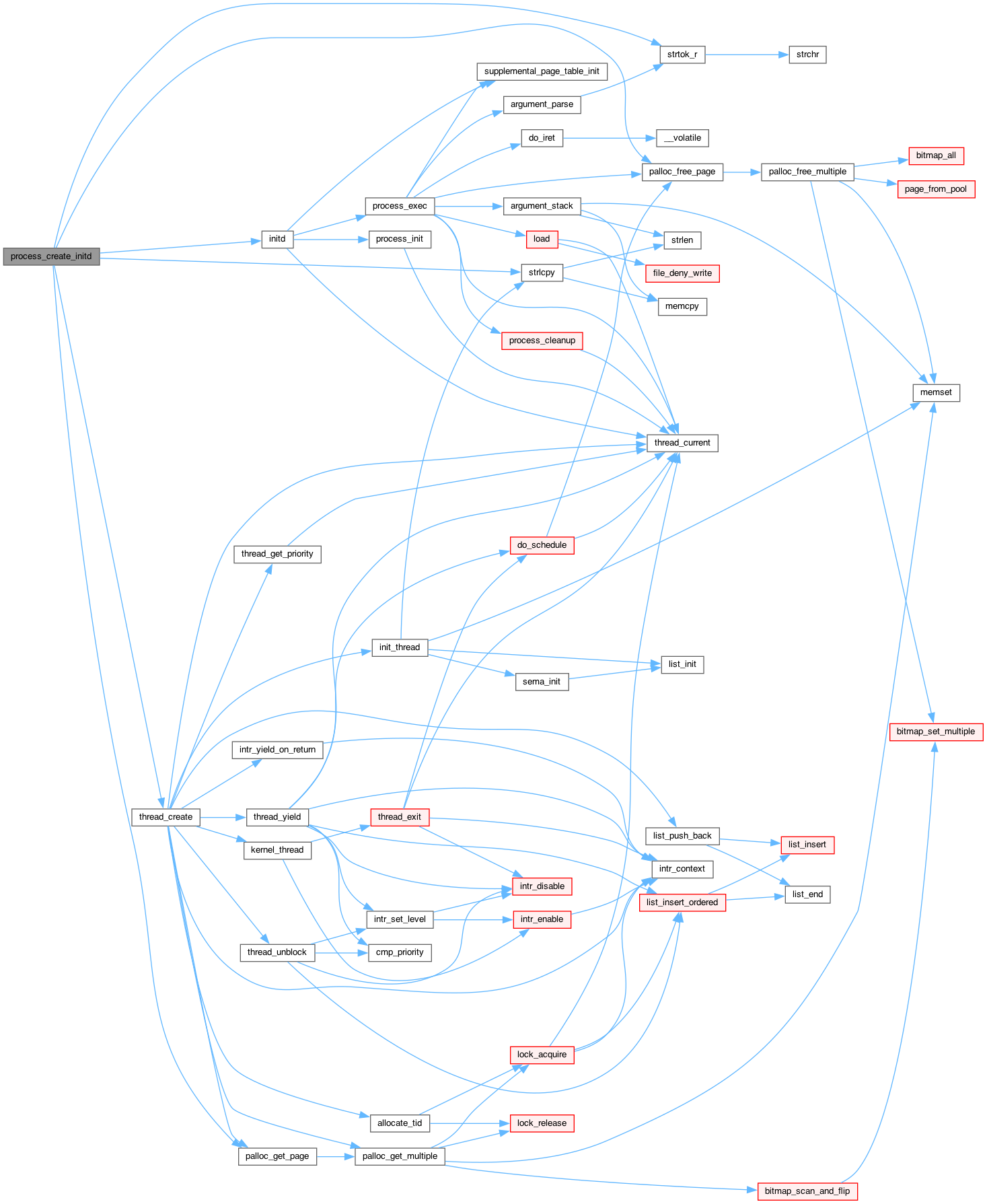

process_create_initd()

tid_t process_create_initd

(

const char *

file_name

)

                                             {
    char *fn_copy, *save_ptr;
    tid_t tid;

    /* Make a copy of FILE_NAME.
     * Otherwise there's a race between the caller and load(). */
    fn_copy = palloc_get_page (0);
    if (fn_copy == NULL)
        return TID_ERROR;
    strlcpy (fn_copy, file_name, PGSIZE);
    /* Create a new thread to execute FILE_NAME. */
    strtok_r (file_name, " ", &save_ptr); // 실행 파일 이름 파싱
    // ↳해당 라인을 추가하지 않으면 커맨드 라인 전체가 스레드 이름으로 지정된다.
    tid = thread_create (file_name, PRI_DEFAULT, initd, fn_copy);
    if (tid == TID_ERROR)
        palloc_free_page (fn_copy);
    return tid;
}

Here is the call graph for this function:

Here is the caller graph for this function:

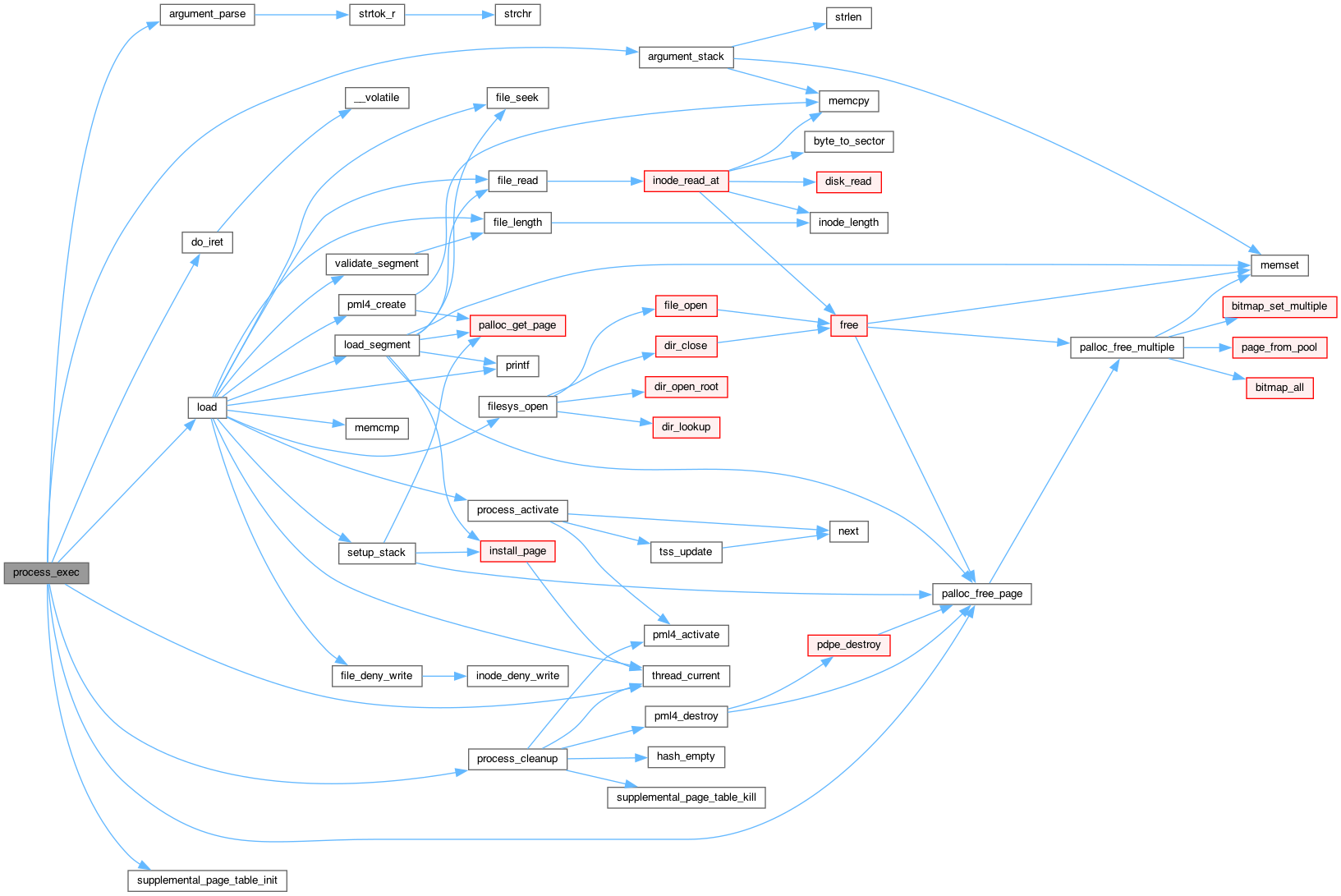

process_exec()

int process_exec

(

void *

f_name

)

                            {
    char *file_name = f_name; // 실행할 파일 이름(argv[0])
    // char *file_name_copy[48];
    bool success;

    /* We cannot use the intr_frame in the thread structure.
     * This is because when current thread rescheduled,
     * it stores the execution information to the member. */
    struct intr_frame _if;
    _if.ds = _if.es = _if.ss = SEL_UDSEG;
    _if.cs = SEL_UCSEG;
    _if.eflags = FLAG_IF | FLAG_MBS;

    int argc = 0;
    char *argv[128]; // 64bit computer(uint64_t : 8byte)

    /* We first kill the current context */
    process_cleanup ();

    /*-------------------------[P3]hash table---------------------------------*/
    #ifdef VM
        supplemental_page_table_init(&thread_current() -> spt);
    #endif
    /*-------------------------[P3]hash table---------------------------------*/

    /* 커맨드 라인을 파싱한다. */
    argument_parse(file_name, &argc, argv);

    /* And then load the binary */
    success = load (file_name, &_if);


    /* If load failed, quit. */
    if (!success){
        palloc_free_page (file_name);
        return -1;
    }

    argument_stack(argc, argv, &_if); // argc, argv로 커맨드 라인 파싱
    // hex_dump(_if.rsp, _if.rsp, USER_STACK - _if.rsp, true); // 메모리에 적재된 상태 출력
    palloc_free_page (file_name);

    /* Start switched process. */
    do_iret (&_if);
    NOT_REACHED ();
}

Here is the call graph for this function:

Here is the caller graph for this function:

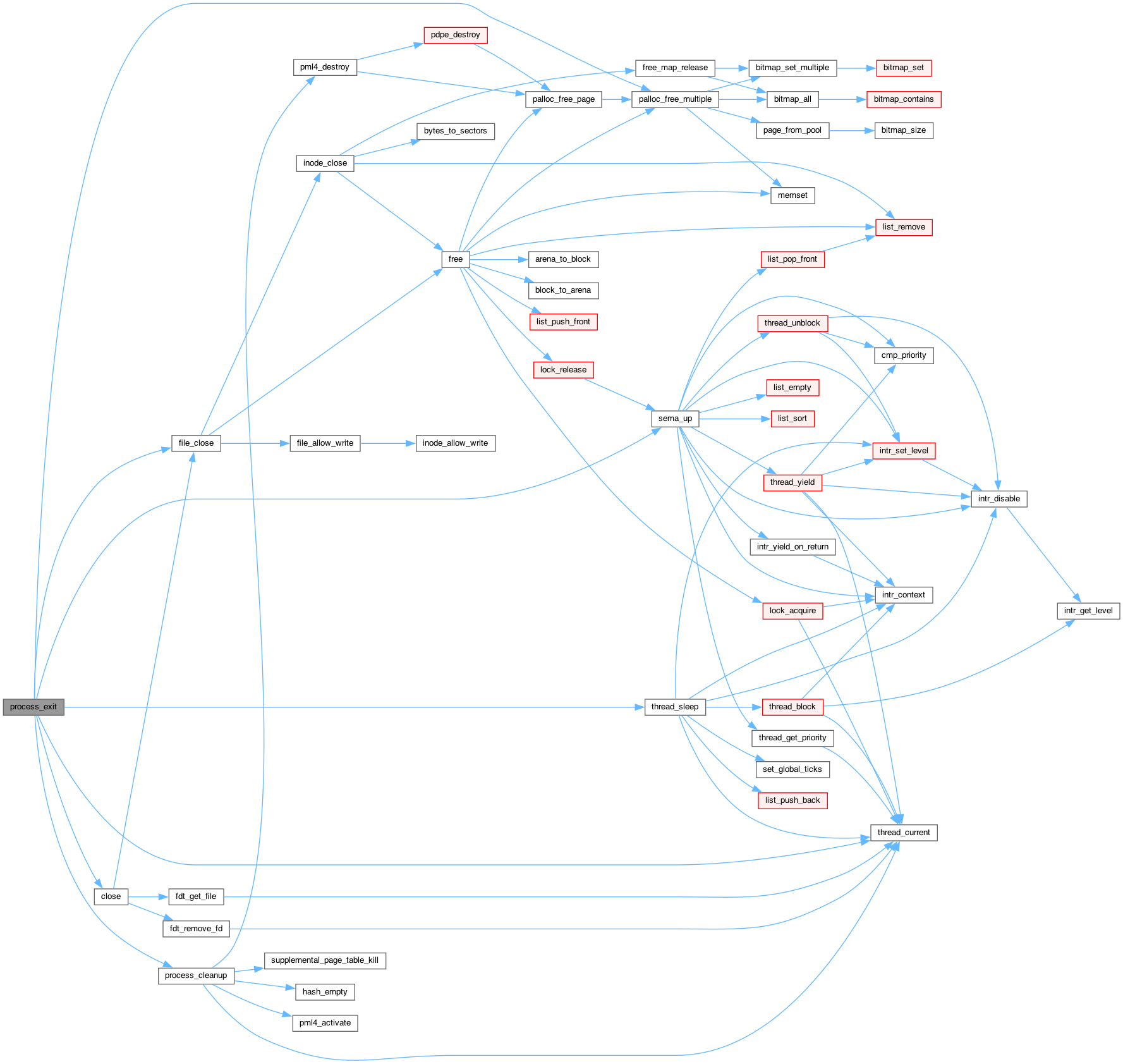

process_exit()

void process_exit

(

void

)

                    {
    struct thread *curr = thread_current ();
    /* TODO: Your code goes here.
     * TODO: Implement process termination message (see
     * TODO: project2/process_termination.html).
     * TODO: We recommend you to implement process resource cleanup here. */

    for (int i = 0; i < FDCOUNT_LIMIT; i++) // 프로세스 종료 시, 해당 프로세스의 fdt의 모든 값을 0으로 만들어준다.
        close(i);
    palloc_free_multiple(curr->fdt, FDT_PAGES); // fd table 메모리 해제

    file_close(curr->running); // 현재 프로세스가 실행중인 파일을 종료한다.

    process_cleanup ();

    sema_up(&curr->wait_sema); // 부모 프로세스가 자식 프로세스의 종료상태를 확인하게 한다.
    thread_sleep(500);
    // sema_down(&curr->free_sema); // 부모 프로세스가 자식 프로세스의 종료 상태를 받을때 까지 대기한다.
}

Here is the call graph for this function:

Here is the caller graph for this function:

process_fork()

tid_t process_fork	(	const char *	name,
		struct intr_frame *if_	UNUSED
	)

                                                               {
    /* Clone current thread to new thread.*/

    struct thread *curr = thread_current();

    memcpy(&curr->parent_if, if_, sizeof(struct intr_frame)); // 전달받은 intr_frame을 parent_if필드에 복사한다.
    // ↳ '__do_fork' 에서 자식 프로세스에 부모의 컨텍스트 정보를 복사하기 위함(부모의 인터럽트 프레임을 찾는 용도로 사용)

    tid_t tid = thread_create(name, curr->priority, __do_fork, curr); // __do_fork를 실행하는 스레드 생성, 현재 스레드를 인자로 넘겨준다.
    if (tid == TID_ERROR)
        return TID_ERROR;

    struct thread *child = get_child_process(tid);
    sema_down(&child->fork_sema); // 자식 프로세스가 로드될 때까지 부모 프로세스는 대기한다.
    if (child->exit_status == TID_ERROR)
        return TID_ERROR;

    return tid; // 부모 프로세스의 리턴값 : 생성한 자식 프로세스의 tid
}

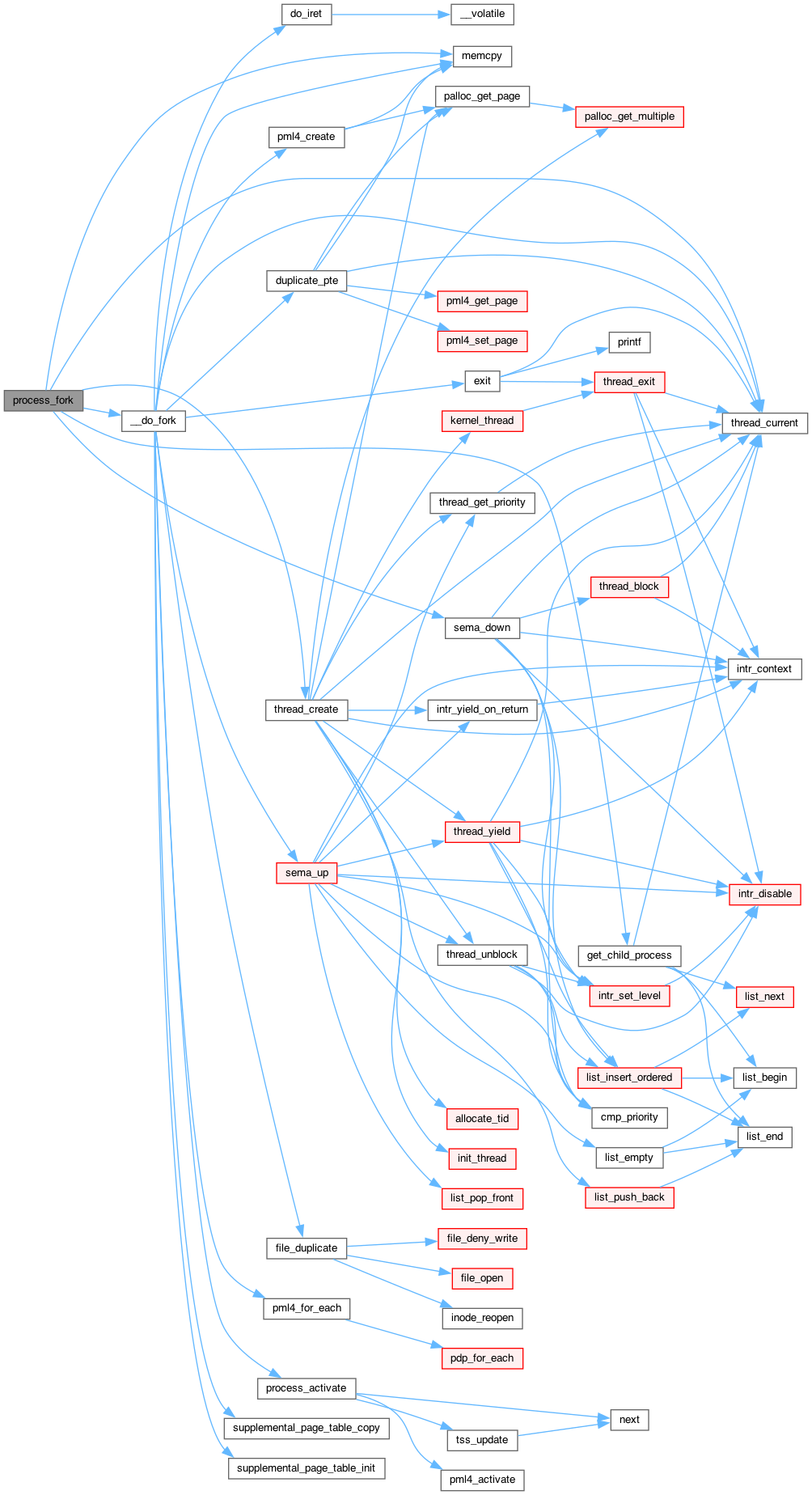

Here is the call graph for this function:

process_init()

static void process_init ( void  )

static

                    {
    struct thread *current = thread_current ();
}

Here is the call graph for this function:

Here is the caller graph for this function:

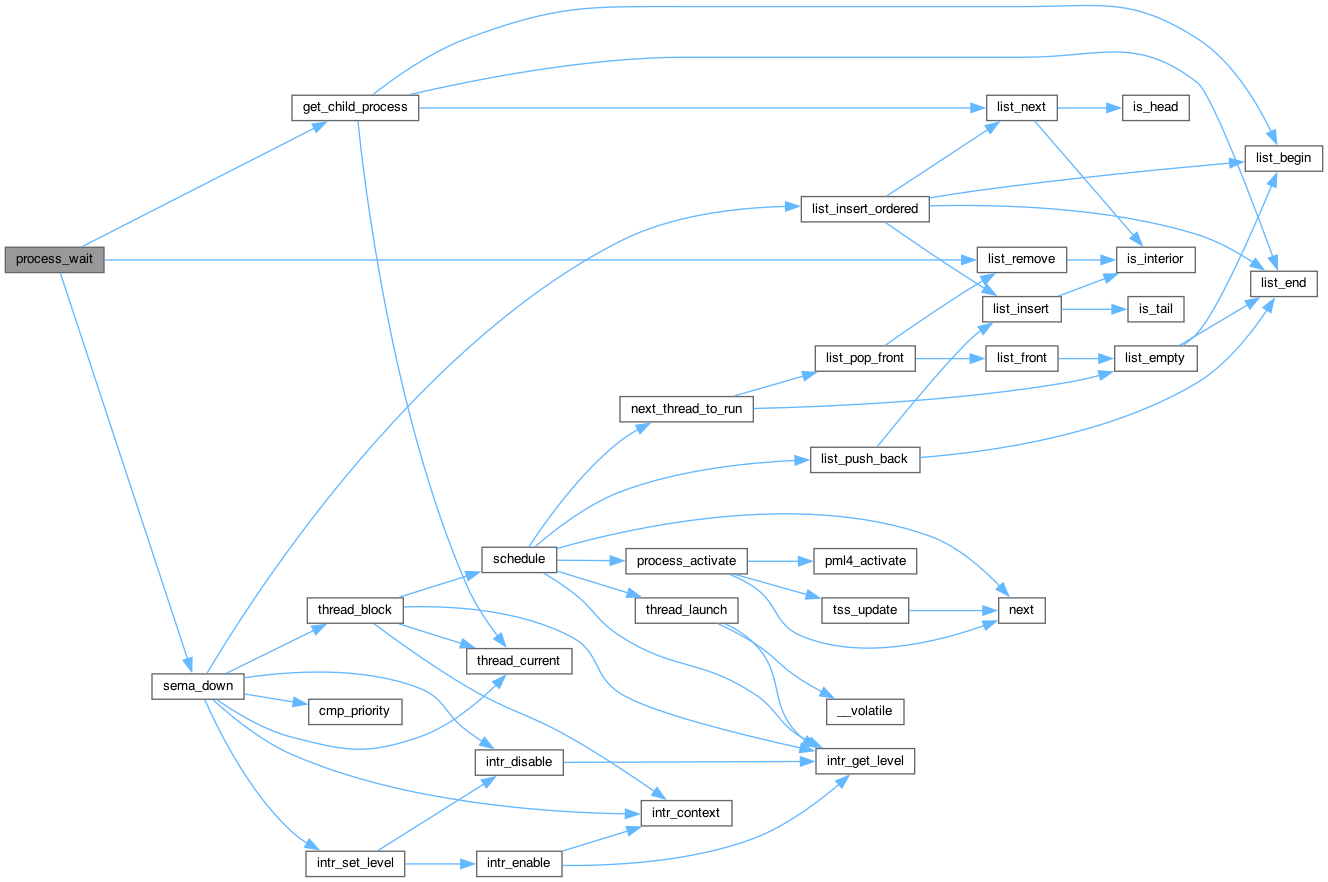

process_wait()

int process_wait

(

tid_t child_tid

UNUSED

)

                                      {
    /* XXX: Hint) The pintos exit if process_wait (initd), we recommend you
    * XXX:       to add infinite loop here before
    * XXX:       implementing the process_wait. */
    // for(int i = 0 ; i<10000000; i++);

    // return -1;
    struct thread *child = get_child_process(child_tid);

    if(child == NULL) // 해당 자식이 존재하지 않는다면 -1 리턴
        return -1;

    sema_down(&child->wait_sema); // 자식 프로세스가 종료할 때까지 대기한다.
    // 컨텍스트 스위칭 발생

    int exit_status = child->exit_status; // 자식으로 부터 종료인자를 전달 받고 리스트에서 삭제한다.
    list_remove(&child->child_elem);

    // sema_up(&child->free_sema); // 자식 프로세스 종료 상태를 받은 후 자식 프로세스를 종료하게 한다.

    return exit_status;
}

Here is the call graph for this function:

setup_stack()

bool setup_stack

(

struct intr_frame *

if_

)

                                     {
    uint8_t *kpage;
    bool success = false;

    kpage = palloc_get_page (PAL_USER | PAL_ZERO);
    if (kpage != NULL) {
        success = install_page (((uint8_t *) USER_STACK) - PGSIZE, kpage, true);
        if (success)
            if_->rsp = USER_STACK;
        else
            palloc_free_page (kpage);
    }
    return success;
}

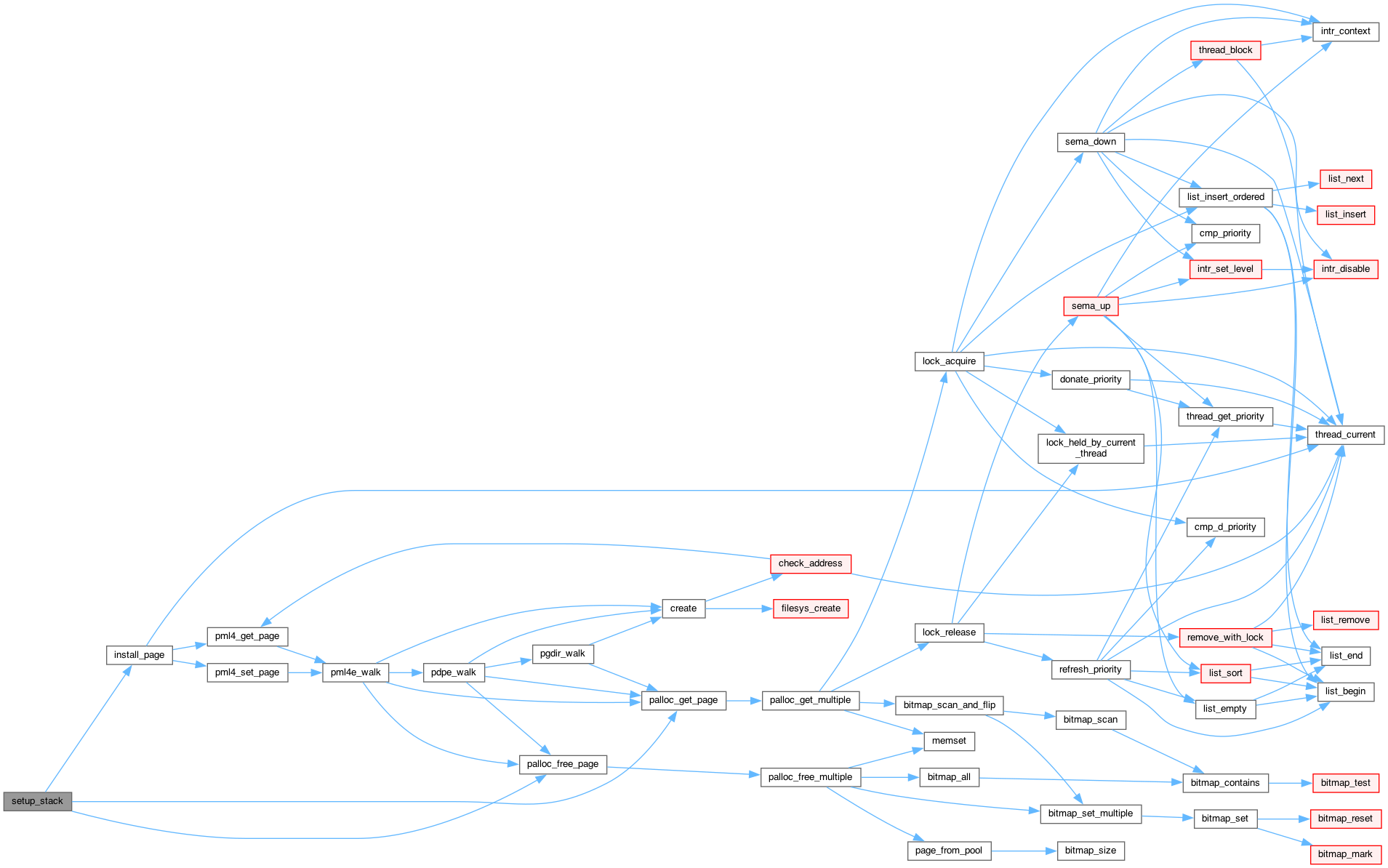

Here is the call graph for this function:

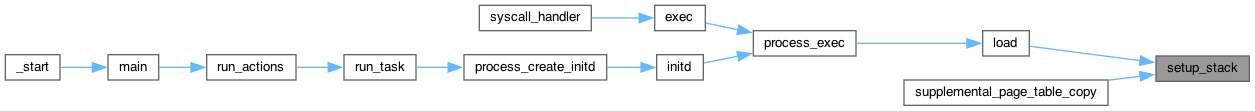

Here is the caller graph for this function:

validate_segment()

static bool validate_segment ( const struct Phdr *  phdr, struct file *  file  )

static

                                                              {
    /* p_offset and p_vaddr must have the same page offset. */
    if ((phdr->p_offset & PGMASK) != (phdr->p_vaddr & PGMASK))
        return false;

    /* p_offset must point within FILE. */
    if (phdr->p_offset > (uint64_t) file_length (file))
        return false;

    /* p_memsz must be at least as big as p_filesz. */
    if (phdr->p_memsz < phdr->p_filesz)
        return false;

    /* The segment must not be empty. */
    if (phdr->p_memsz == 0)
        return false;

    /* The virtual memory region must both start and end within the
       user address space range. */
    if (!is_user_vaddr ((void *) phdr->p_vaddr))
        return false;
    if (!is_user_vaddr ((void *) (phdr->p_vaddr + phdr->p_memsz)))
        return false;

    /* The region cannot "wrap around" across the kernel virtual
       address space. */
    if (phdr->p_vaddr + phdr->p_memsz < phdr->p_vaddr)
        return false;

    /* Disallow mapping page 0.
       Not only is it a bad idea to map page 0, but if we allowed
       it then user code that passed a null pointer to system calls
       could quite likely panic the kernel by way of null pointer
       assertions in memcpy(), etc. */
    if (phdr->p_vaddr < PGSIZE)
        return false;

    /* It's okay. */
    return true;
}

Here is the call graph for this function:

Here is the caller graph for this function:
