thread.h File Reference

#include <debug.h>
#include <list.h>
#include <stdint.h>
#include "threads/interrupt.h"
#include "threads/synch.h"

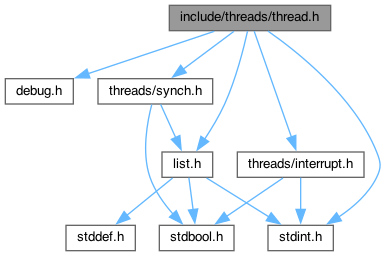

Include dependency graph for thread.h:

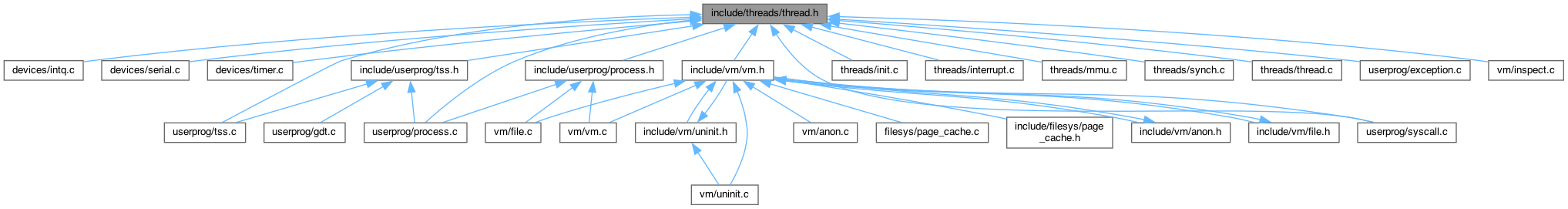

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	thread

Macros
#define	USERPROG
#define	VM
#define	TID_ERROR   ((tid_t) -1) /* Error value for tid_t. */
#define	PRI_MIN   0 /* Lowest priority. */
#define	PRI_DEFAULT   31 /* Default priority. */
#define	PRI_MAX   63 /* Highest priority. */
#define	FDT_PAGES   3
#define	FDCOUNT_LIMIT   FDT_PAGES *(1<<9)

Typedefs
typedef int	tid_t
typedef void	thread_func(void *aux)

Enumerations
enum	thread_status { THREAD_RUNNING , THREAD_READY , THREAD_BLOCKED , THREAD_DYING }

Functions
void	thread_init (void)
void	thread_start (void)
void	thread_tick (void)
void	thread_print_stats (void)
tid_t	thread_create (const char *name, int priority, thread_func *, void *)
void	thread_block (void)
void	thread_unblock (struct thread *)
struct thread *	thread_current (void)
tid_t	thread_tid (void)
const char *	thread_name (void)
void	thread_exit (void) NO_RETURN
void	thread_yield (void)
int	thread_get_priority (void)
void	thread_set_priority (int)
int	thread_get_nice (void)
void	thread_set_nice (int)
int	thread_get_recent_cpu (void)
int	thread_get_load_avg (void)
void	do_iret (struct intr_frame *tf)
int64_t	get_global_ticks (void)
void	set_global_ticks (int64_t ticks)
void	thread_awake (int64_t ticks)
void	thread_sleep (int64_t ticks)
bool	cmp_priority (const struct list_elem *a, const struct list_elem *b, void *aux UNUSED)

Variables
bool	thread_mlfqs

Macro Definition Documentation

FDCOUNT_LIMIT

#define FDCOUNT_LIMIT   FDT_PAGES *(1<<9)

FDT_PAGES

#define FDT_PAGES   3

PRI_DEFAULT

#define PRI_DEFAULT   31 /* Default priority. */

PRI_MAX

#define PRI_MAX   63 /* Highest priority. */

PRI_MIN

#define PRI_MIN   0 /* Lowest priority. */

TID_ERROR

#define TID_ERROR   ((tid_t) -1) /* Error value for tid_t. */

USERPROG

#define USERPROG

VM

#define VM

Typedef Documentation

thread_func

typedef void thread_func(void *aux)

tid_t

typedef int tid_t

Enumeration Type Documentation

thread_status

enum thread_status

Enumerator
THREAD_RUNNING
THREAD_READY
THREAD_BLOCKED
THREAD_DYING

                   {
    THREAD_RUNNING,     /* Running thread. */
    THREAD_READY,       /* Not running but ready to run. */
    THREAD_BLOCKED,     /* Waiting for an event to trigger. */
    THREAD_DYING        /* About to be destroyed. */
};

Function Documentation

cmp_priority()

bool cmp_priority	(	const struct list_elem *	a,
		const struct list_elem *	b,
		void *aux	UNUSED
	)

                                                                                      {
    return list_entry(a, struct thread, elem) -> priority \
        > list_entry(b, struct thread, elem) -> priority ? \
        1 : 0;
}

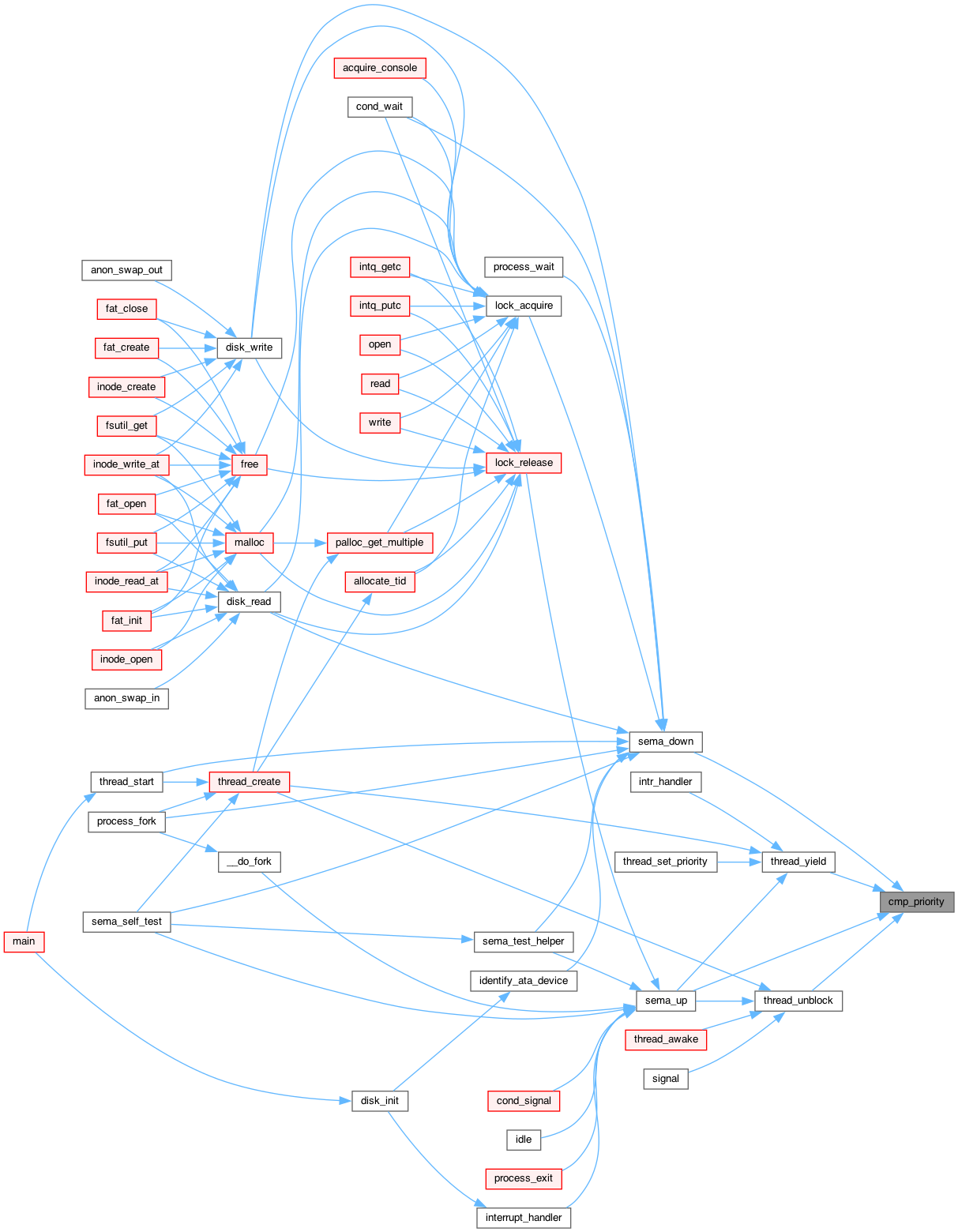

Here is the caller graph for this function:

do_iret()

void do_iret

(

struct intr_frame *

tf

)

                                {
    __asm __volatile(
            "movq %0, %%rsp\n"
            "movq 0(%%rsp),%%r15\n"
            "movq 8(%%rsp),%%r14\n"
            "movq 16(%%rsp),%%r13\n"
            "movq 24(%%rsp),%%r12\n"
            "movq 32(%%rsp),%%r11\n"
            "movq 40(%%rsp),%%r10\n"
            "movq 48(%%rsp),%%r9\n"
            "movq 56(%%rsp),%%r8\n"
            "movq 64(%%rsp),%%rsi\n"
            "movq 72(%%rsp),%%rdi\n"
            "movq 80(%%rsp),%%rbp\n"
            "movq 88(%%rsp),%%rdx\n"
            "movq 96(%%rsp),%%rcx\n"
            "movq 104(%%rsp),%%rbx\n"
            "movq 112(%%rsp),%%rax\n"
            "addq $120,%%rsp\n"
            "movw 8(%%rsp),%%ds\n"
            "movw (%%rsp),%%es\n"
            "addq $32, %%rsp\n"
            "iretq"
            : : "g" ((uint64_t) tf) : "memory");
}

Here is the call graph for this function:

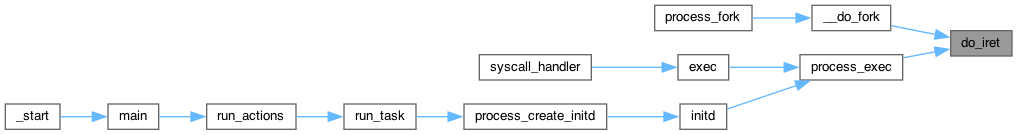

Here is the caller graph for this function:

get_global_ticks()

int64_t get_global_ticks

(

void

)

                  {
    return global_ticks;
}

Here is the caller graph for this function:

set_global_ticks()

void set_global_ticks

(

int64_t

ticks

)

                               {
    if (ticks < global_ticks) {
        global_ticks = ticks;
    }
}

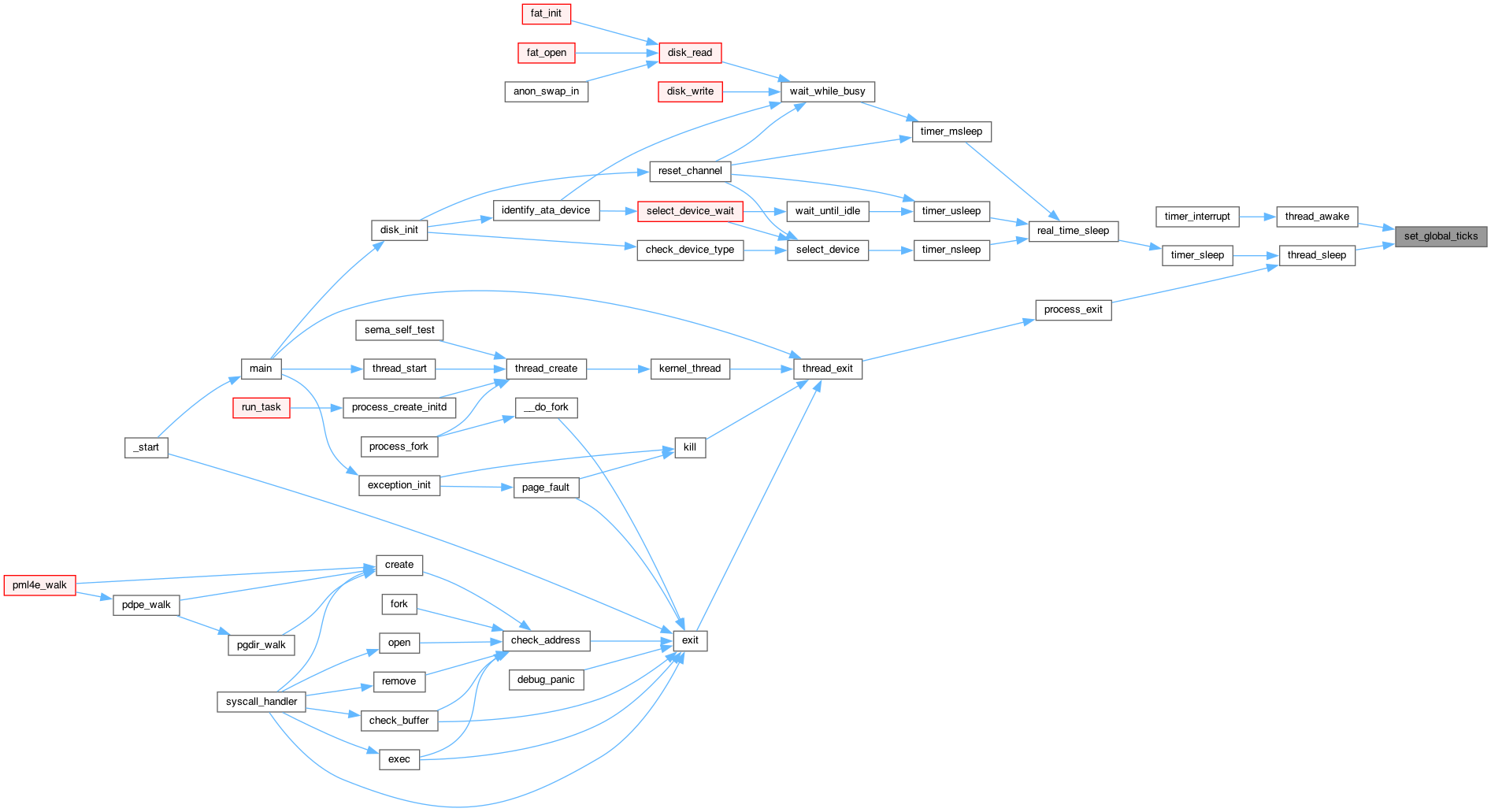

Here is the caller graph for this function:

thread_awake()

void thread_awake

(

int64_t

ticks

)

                           {
    struct list_elem *curr = list_begin(&sleep_list);
    set_global_ticks(INT64_MAX); // 기존 글로벌 틱으로 비교하면 초기화되지 않음
    struct thread *curr_thread;
    while (curr != list_end(&sleep_list)){ // 전체 순회
        curr_thread = list_entry(curr, struct thread, elem);
        if (curr_thread -> wakeup_tick <= ticks) {
            curr = list_remove(curr); // curr을 슬립 리스트에서 뻄
            thread_unblock(curr_thread); // curr을 레디 상태로 만듦(unblocked)
        } else {
            set_global_ticks(curr_thread -> wakeup_tick);
            // 슬립 리스트에서 현재 깨어나야하는 시간이 ticks 보다 클때, 디음 루틴을 위해 글로벌 틱을 재설정한다.
            curr = curr -> next;
        }
    }
}

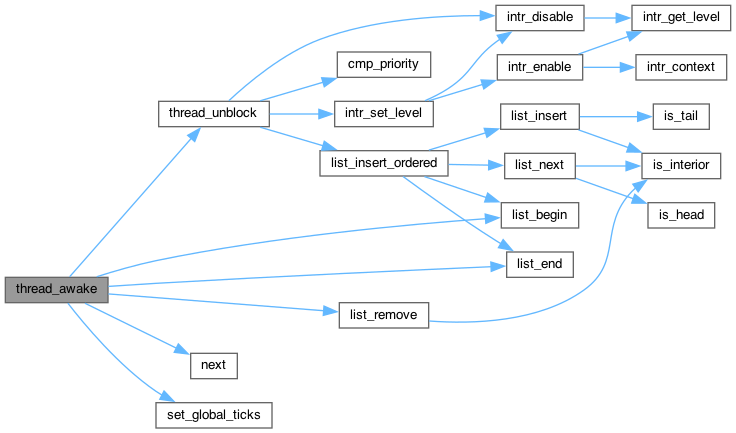

Here is the call graph for this function:

Here is the caller graph for this function:

thread_block()

void thread_block

(

void

)

                    {
    ASSERT (!intr_context ());
    ASSERT (intr_get_level () == INTR_OFF);
    thread_current ()->status = THREAD_BLOCKED;
    schedule ();
}

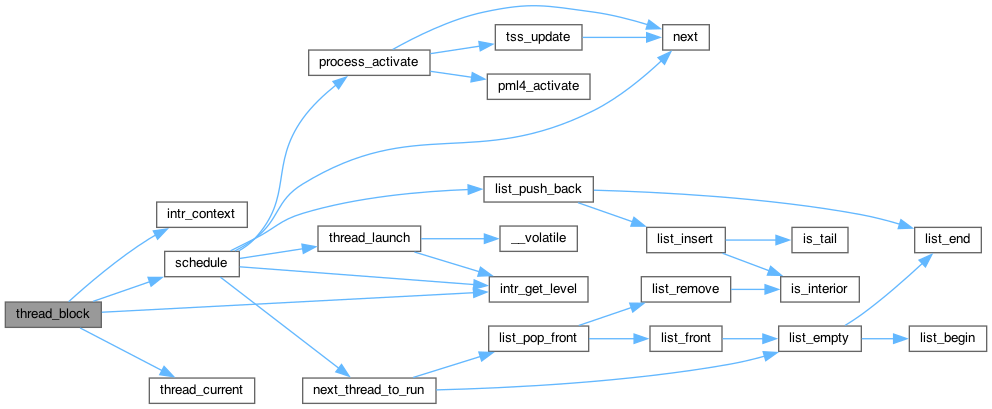

Here is the call graph for this function:

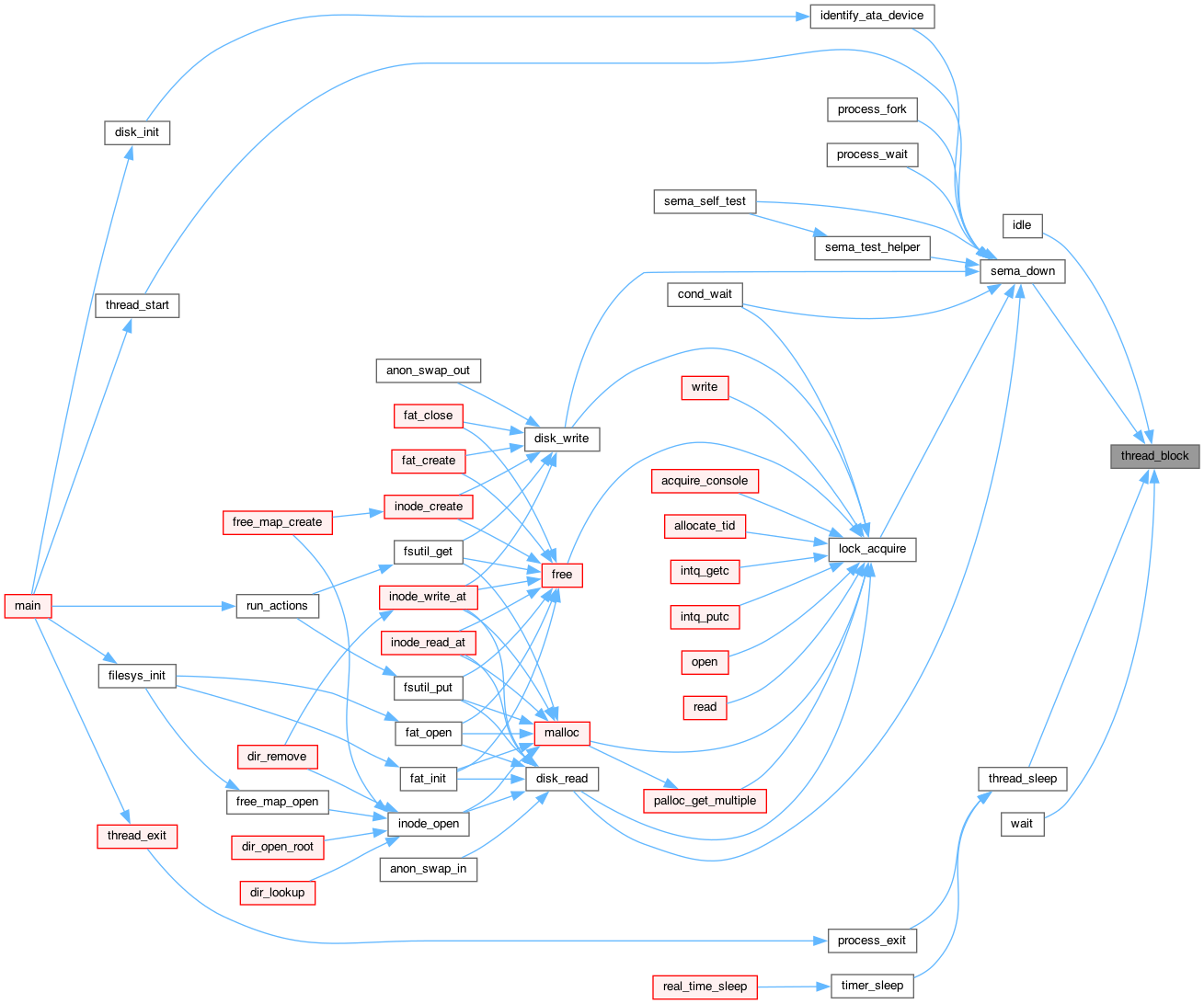

Here is the caller graph for this function:

thread_create()

tid_t thread_create	(	const char *	name,
		int	priority,
		thread_func *	function,
		void *	aux
	)

                                                                                 {
    struct thread *t;
    tid_t tid;

    ASSERT (function != NULL);

    /* Allocate thread. */
    t = palloc_get_page (PAL_ZERO);
    if (t == NULL)
        return TID_ERROR;

    /* Initialize thread. */
    init_thread (t, name, priority);
    tid = t->tid = allocate_tid ();

    /*------------------------- [P2] System Call --------------------------*/
    t->fdt = palloc_get_multiple(PAL_ZERO, FDT_PAGES);
    if (t->fdt == NULL) {
        return TID_ERROR;
    }
    t->next_fd = 2; // 0 : stdin, 1 : stdout
    t->fdt[0] = 1; // STDIN_FILENO -> dummy value
    t->fdt[1] = 2; // STDOUT_FILENO -> dummy value

/*------------------------- [P2] System Call - Thread --------------------------*/
    /* 현재 스레드의 자식 리스트에 새로 생성한 스레드 추가 */
    struct thread *curr = thread_current();
    list_push_back(&curr->child_list,&t->child_elem);

    /* Call the kernel_thread if it scheduled.
     * Note) rdi is 1st argument, and rsi is 2nd argument. */
    t->tf.rip = (uintptr_t) kernel_thread;
    t->tf.R.rdi = (uint64_t) function;
    t->tf.R.rsi = (uint64_t) aux;
    t->tf.ds = SEL_KDSEG;
    t->tf.es = SEL_KDSEG;
    t->tf.ss = SEL_KDSEG;
    t->tf.cs = SEL_KCSEG;
    t->tf.eflags = FLAG_IF;

    /*------------------------- [P1] Priority Scheduling --------------------------*/
    /* Add to run queue. */
    thread_unblock (t); // ready_list 에 새로 넣은 스레드

    if (thread_get_priority() < priority) { //1. 현재 실행중인 스레드와 새로 추가하려는 스레드 비교
        if (intr_context())
            intr_yield_on_return();
        else
            thread_yield(); //2. 만약 새로 추가하려는 스레드가 현재 실행중인 스레드보다 우선순위가 높으면 CPU를 선점한다.
    }
    return tid;
}

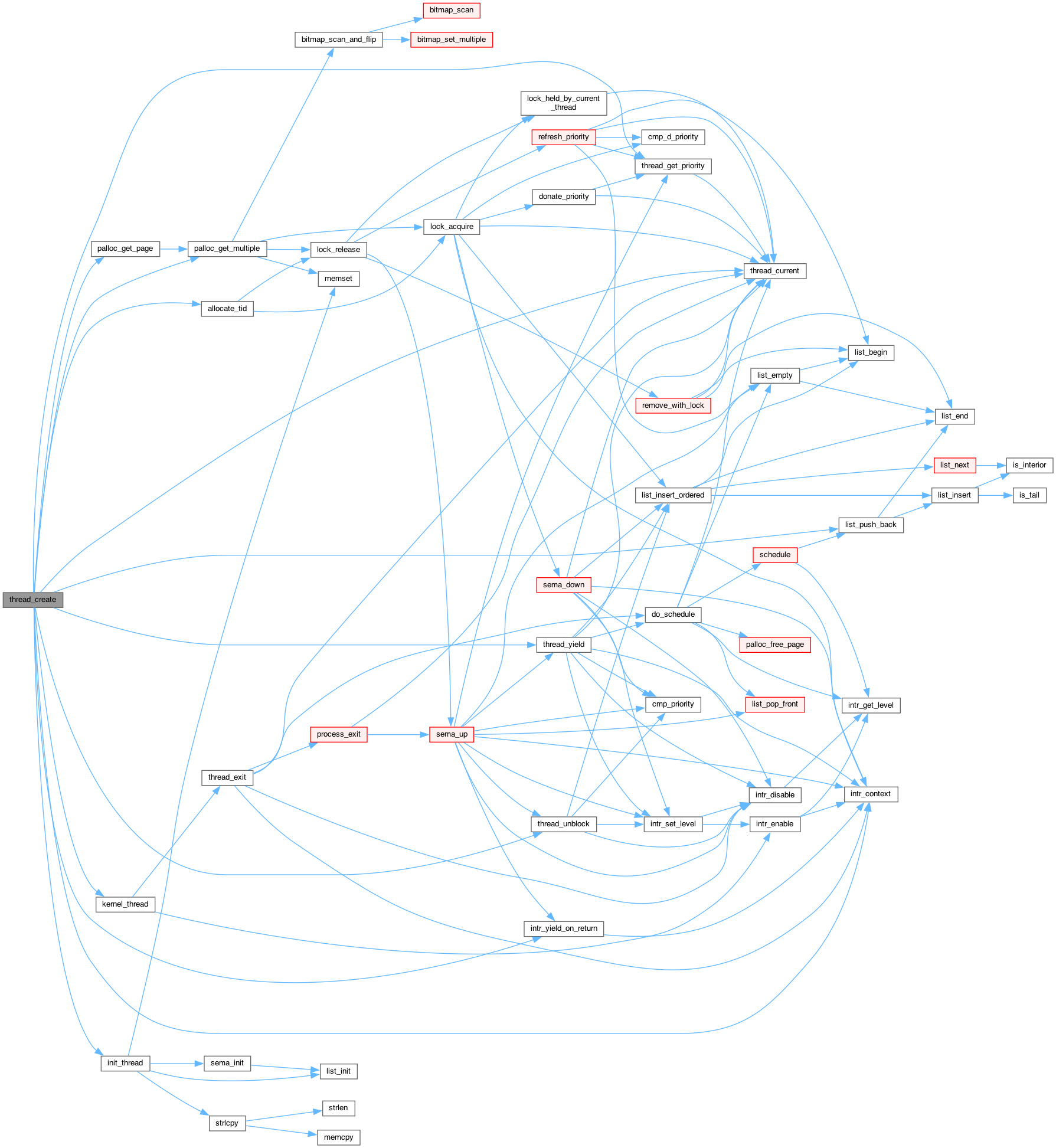

Here is the call graph for this function:

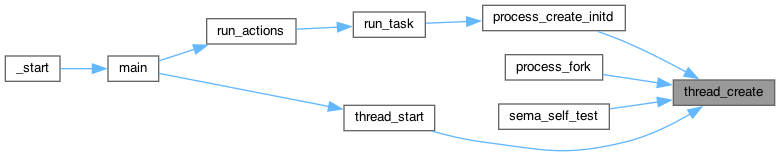

Here is the caller graph for this function:

thread_current()

struct thread * thread_current

(

void

)

                      {
    struct thread *t = running_thread ();

    /* Make sure T is really a thread.
       If either of these assertions fire, then your thread may
       have overflowed its stack.  Each thread has less than 4 kB
       of stack, so a few big automatic arrays or moderate
       recursion can cause stack overflow. */
    ASSERT (is_thread (t));
    ASSERT (t->status == THREAD_RUNNING);

    return t;
}

thread_exit()

void thread_exit

(

void

)

                   {
    ASSERT (!intr_context ());
    struct thread *curr = thread_current (); // 현재 스레드의 포인터

#ifdef USERPROG
    process_exit ();
#endif

    /* Just set our status to dying and schedule another process.
       We will be destroyed during the call to schedule_tail(). */
    intr_disable ();
    do_schedule (THREAD_DYING);
    NOT_REACHED ();
}

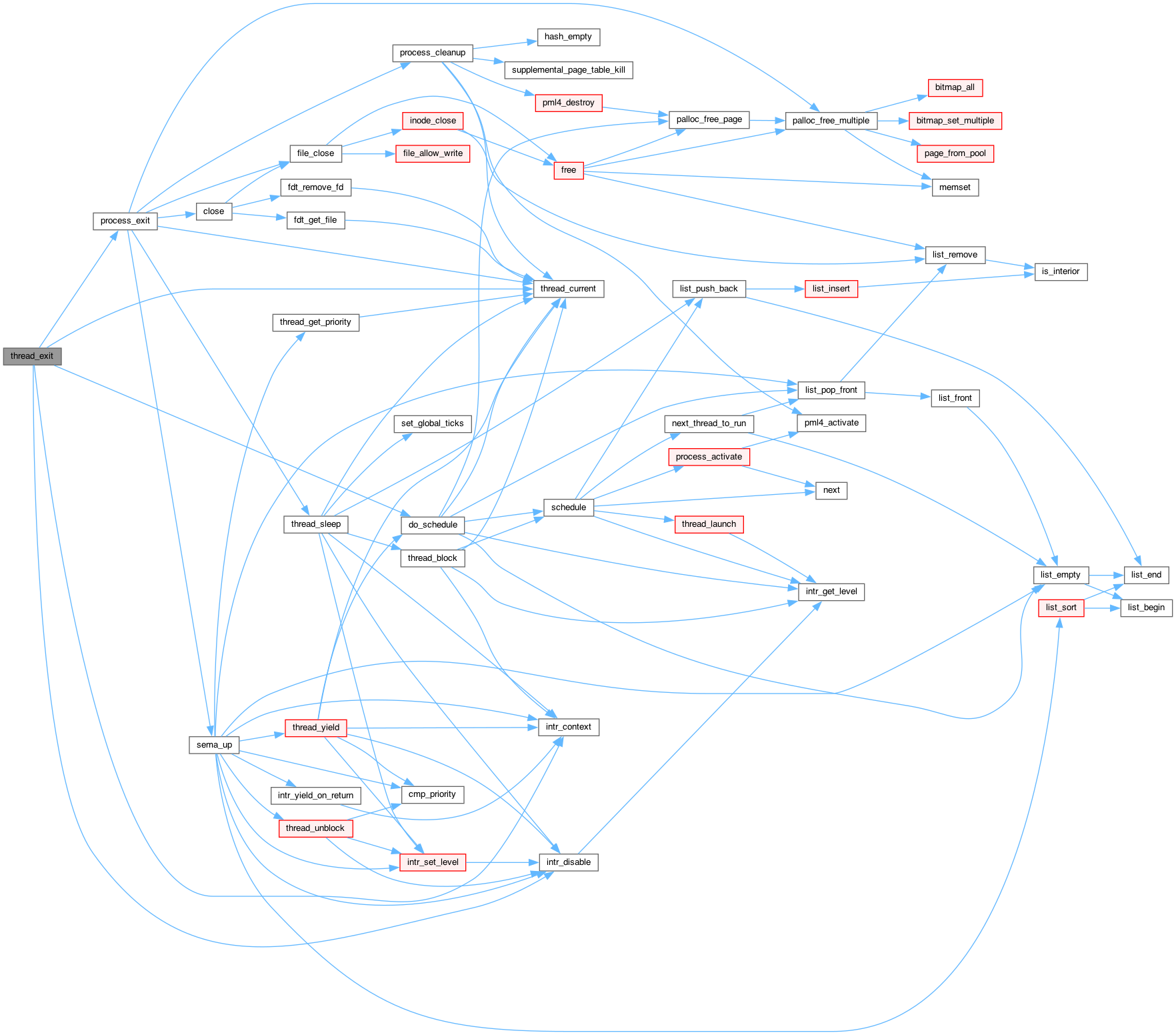

Here is the call graph for this function:

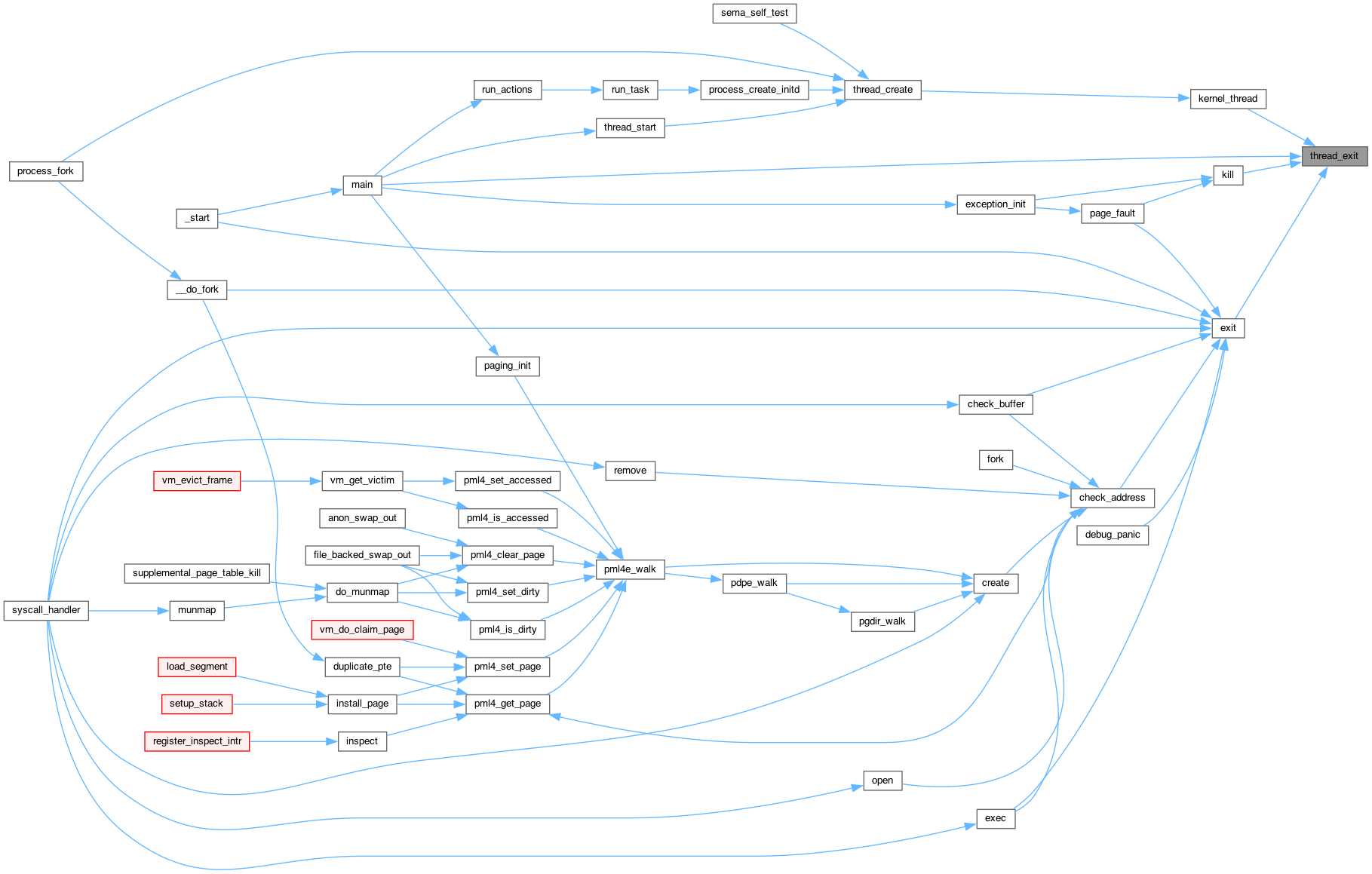

Here is the caller graph for this function:

thread_get_load_avg()

int thread_get_load_avg

(

void

)

                           {
    /* TODO: Your implementation goes here */
    return 0;
}

thread_get_nice()

int thread_get_nice

(

void

)

                       {
    /* TODO: Your implementation goes here */
    return 0;
}

thread_get_priority()

int thread_get_priority

(

void

)

                           {
    return thread_current ()->priority;
}

Here is the call graph for this function:

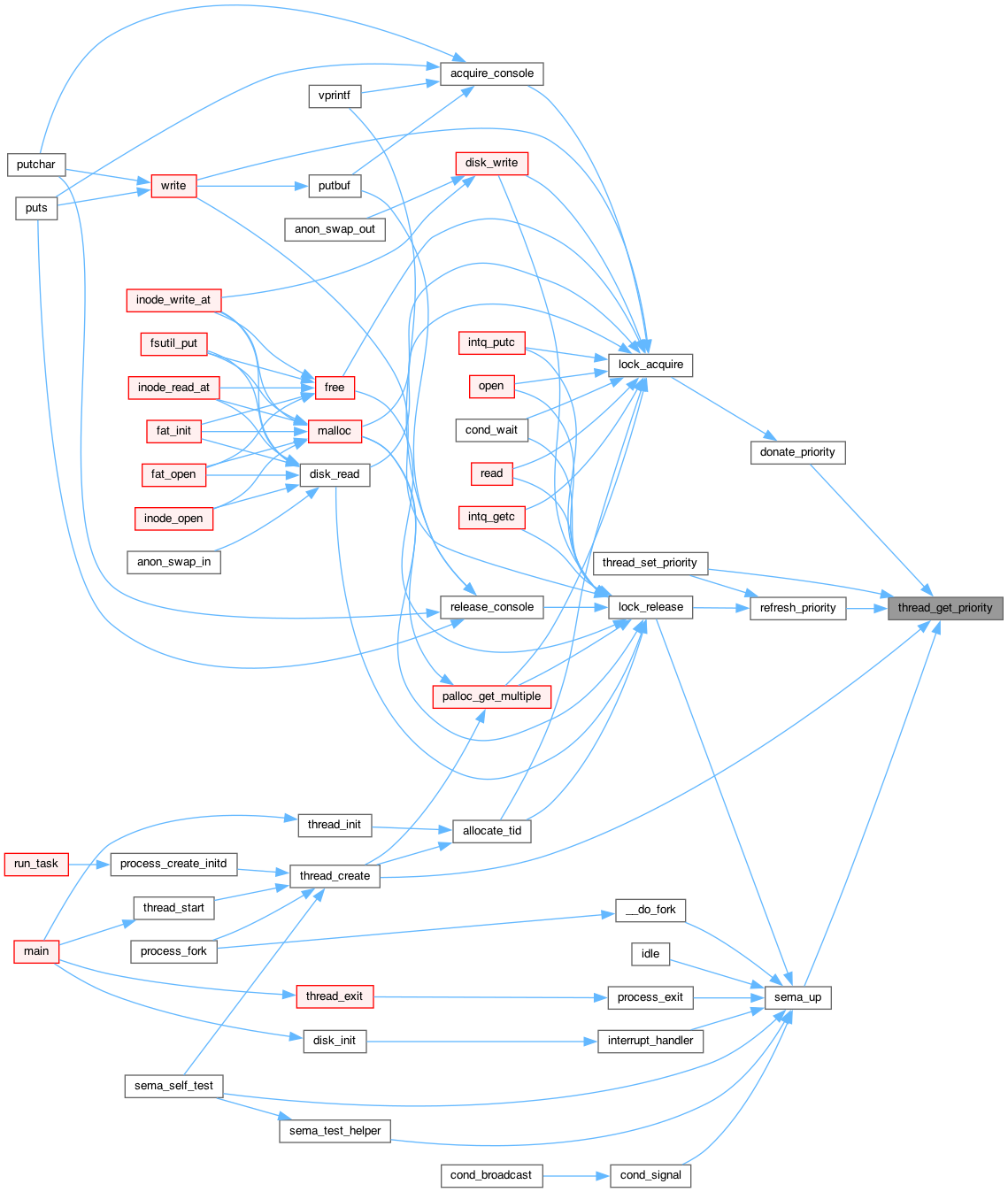

Here is the caller graph for this function:

thread_get_recent_cpu()

int thread_get_recent_cpu

(

void

)

                             {
    /* TODO: Your implementation goes here */
    return 0;
}

thread_init()

void thread_init

(

void

)

                   {
    printf("thread init\n");
    ASSERT (intr_get_level () == INTR_OFF);

    /* Reload the temporal gdt for the kernel
     * This gdt does not include the user context.
     * The kernel will rebuild the gdt with user context, in gdt_init (). */
    struct desc_ptr gdt_ds = {
        .size = sizeof (gdt) - 1,
        .address = (uint64_t) gdt
    };
    lgdt (&gdt_ds);

    /*------------------------- [P1] Alarm Clock --------------------------*/
    /* Init the globla thread context */
    lock_init (&tid_lock);
    list_init (&ready_list);
    list_init (&sleep_list); // sleep_list를 초기화 한다.
    list_init (&destruction_req);

    /* Set up a thread structure for the running thread. */
    initial_thread = running_thread ();
    init_thread (initial_thread, "main", PRI_DEFAULT);
    initial_thread->status = THREAD_RUNNING;
    initial_thread->tid = allocate_tid ();
}

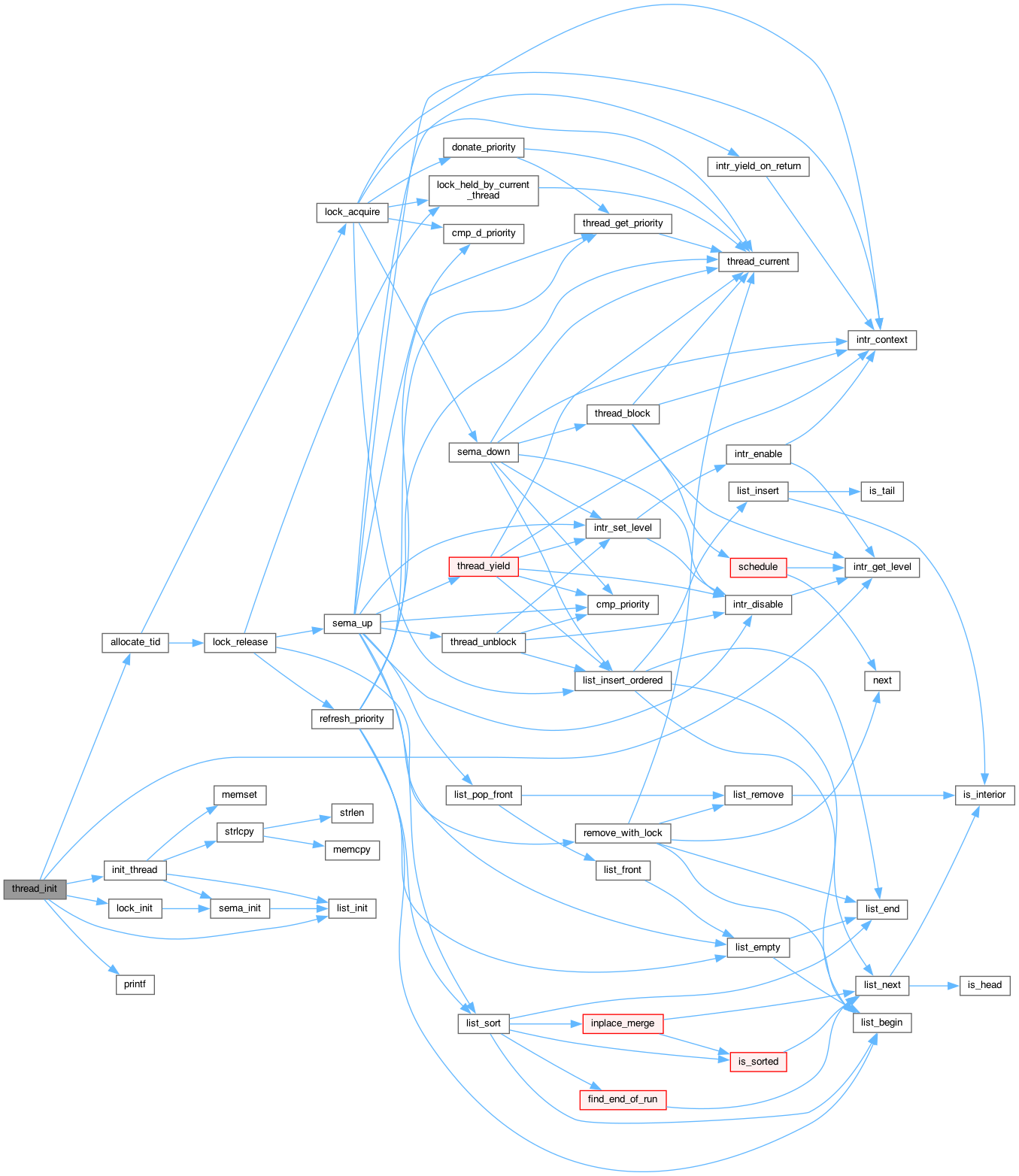

Here is the call graph for this function:

Here is the caller graph for this function:

thread_name()

const char * thread_name

(

void

)

                   {
    return thread_current ()->name;
}

Here is the call graph for this function:

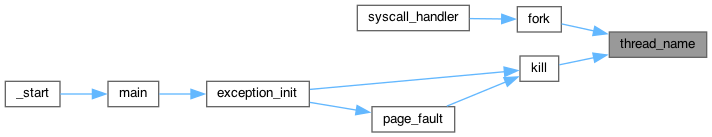

Here is the caller graph for this function:

thread_print_stats()

void thread_print_stats

(

void

)

                          {
    printf ("Thread: %lld idle ticks, %lld kernel ticks, %lld user ticks\n",
            idle_ticks, kernel_ticks, user_ticks);
}

Here is the call graph for this function:

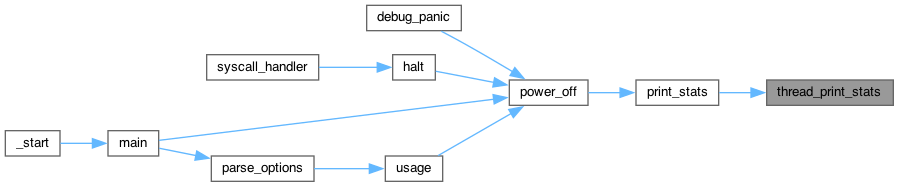

Here is the caller graph for this function:

thread_set_nice()

void thread_set_nice

(

int

)

thread_set_priority()

void thread_set_priority

(

int

new_priority

)

                                       {
    thread_current ()->priority_base = new_priority;
    refresh_priority ();

    if (thread_get_priority () < list_entry (list_begin (&ready_list), struct thread, elem)->priority) {
        if (intr_context())
            intr_yield_on_return();
        else
            thread_yield ();
    }
}

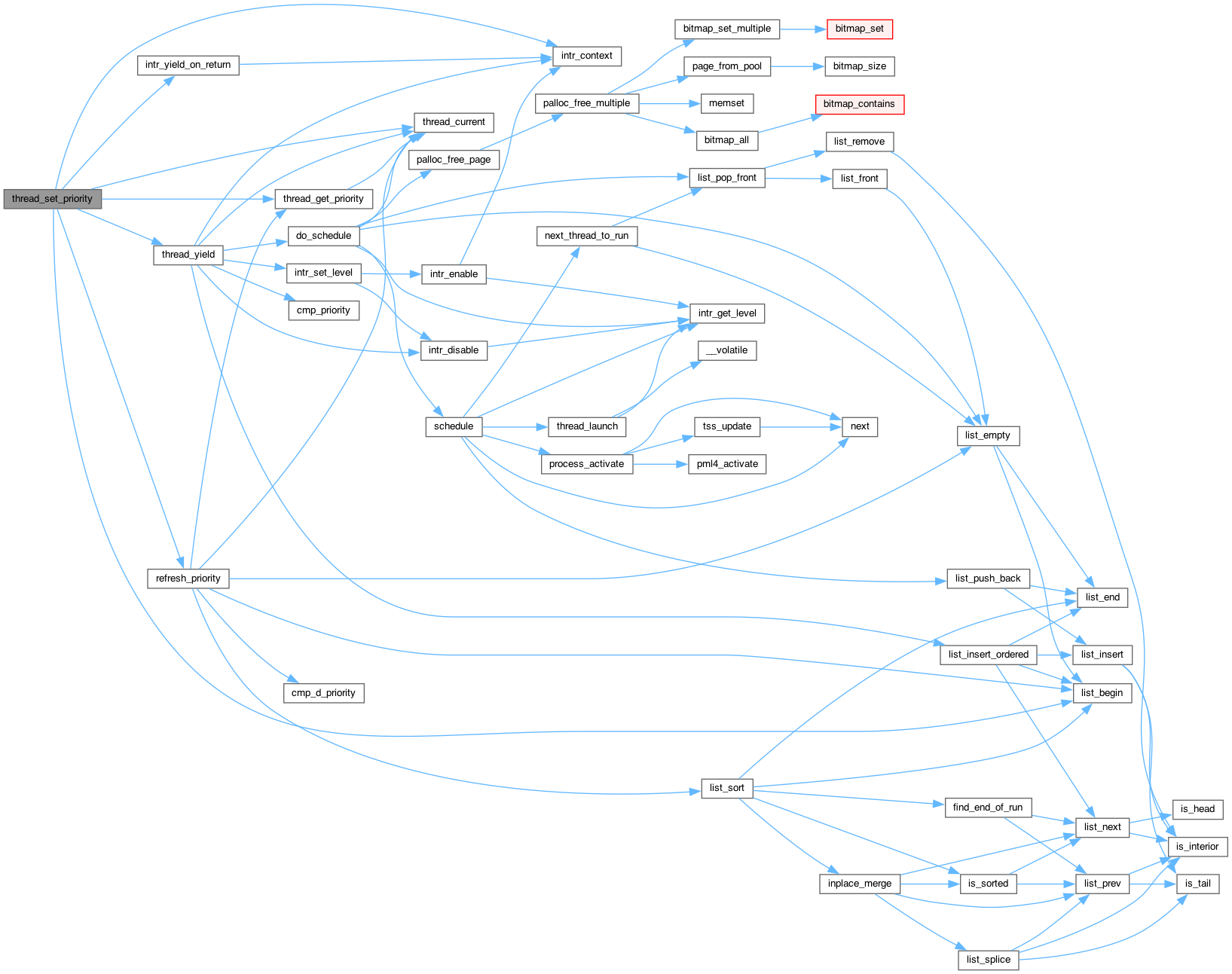

Here is the call graph for this function:

thread_sleep()

void thread_sleep

(

int64_t

ticks

)

                           { // ticks : 해당 스레드가 깨어나야 할 절대적인 시간 (eg. 12:05)
    struct thread *curr = thread_current (); // 현재 스레드의 포인터
    enum intr_level old_level; // 이전 상태

    ASSERT (!intr_context ());

    old_level = intr_disable (); // 인터럽터를 비활성화 시킨다.
    if (curr != idle_thread) // 현재 스레드가 유휴 스레드가 아니면 sleep_list의 맨 뒤로 넣는다.
    {
        curr -> wakeup_tick = ticks; // 깨워야할 시간으로 새로 받은 인자를 넣는다.
        list_push_back (&sleep_list, &curr->elem); // 현재 스레드를 레디리스트의 맨 뒤로 삽입한다.
        // curr -> status = THREAD_BLOCKED;

        set_global_ticks(ticks);
    }

    /* 스레드의 상태를 BLOCKED로 전환하고 컨텍스트 스위치(schedule())를 수행한다. */
    thread_block();
    // do_schedule (THREAD_BLOCKED); (= thread_block)
    intr_set_level (old_level); // 이후 다시 인터럽터를 활성화한다.
}

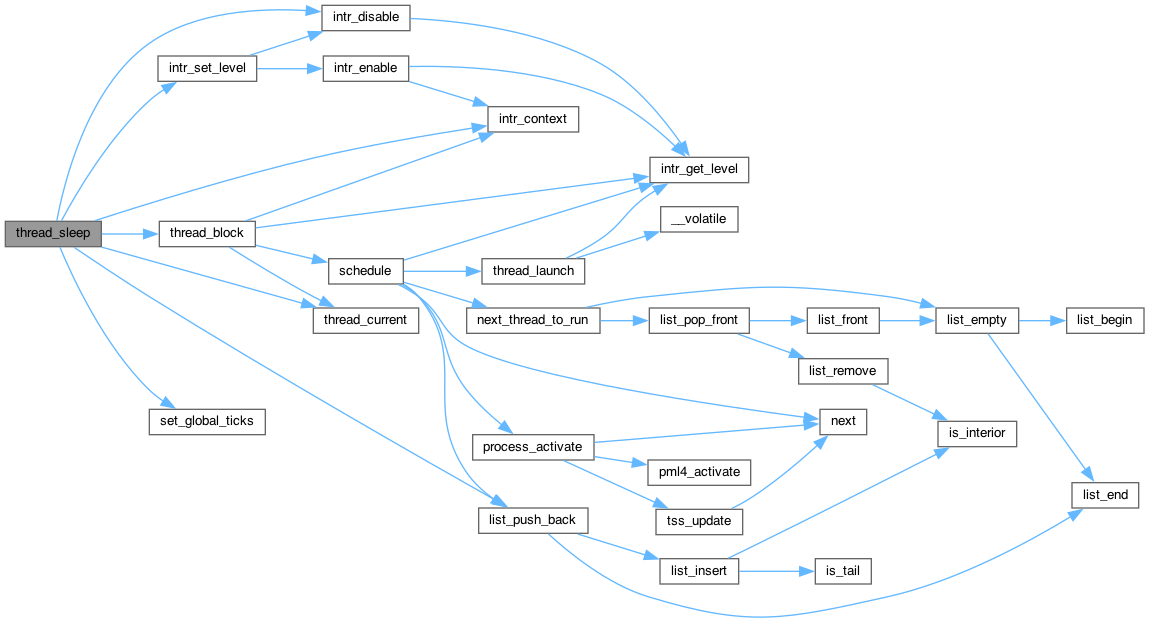

Here is the call graph for this function:

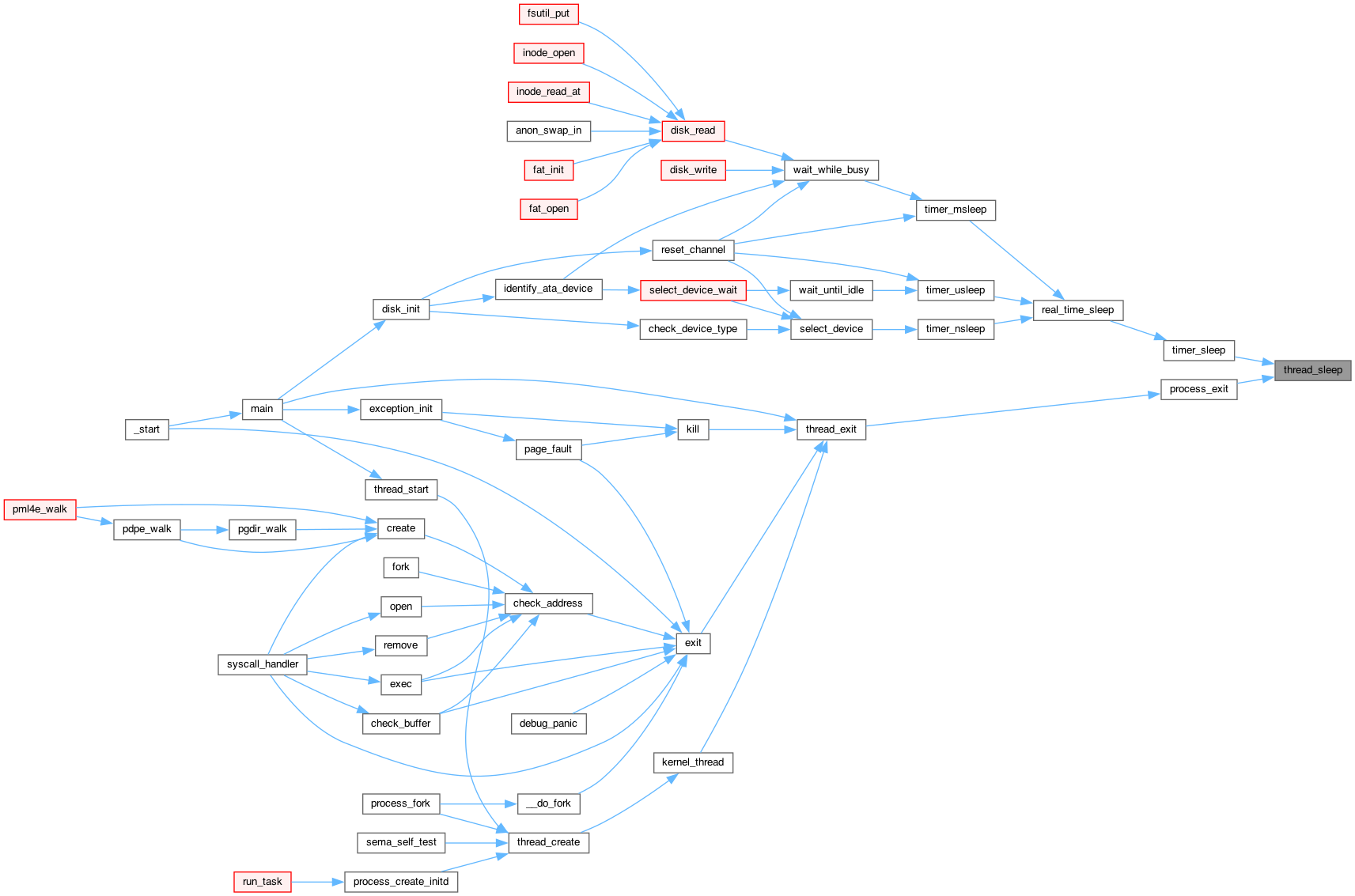

Here is the caller graph for this function:

thread_start()

void thread_start

(

void

)

                    {
    /* Create the idle thread. */
    struct semaphore idle_started;
    sema_init (&idle_started, 0);
    thread_create ("idle", PRI_MIN, idle, &idle_started);

    /* Start preemptive thread scheduling. */
    intr_enable ();

    /* Wait for the idle thread to initialize idle_thread. */
    sema_down (&idle_started);
}

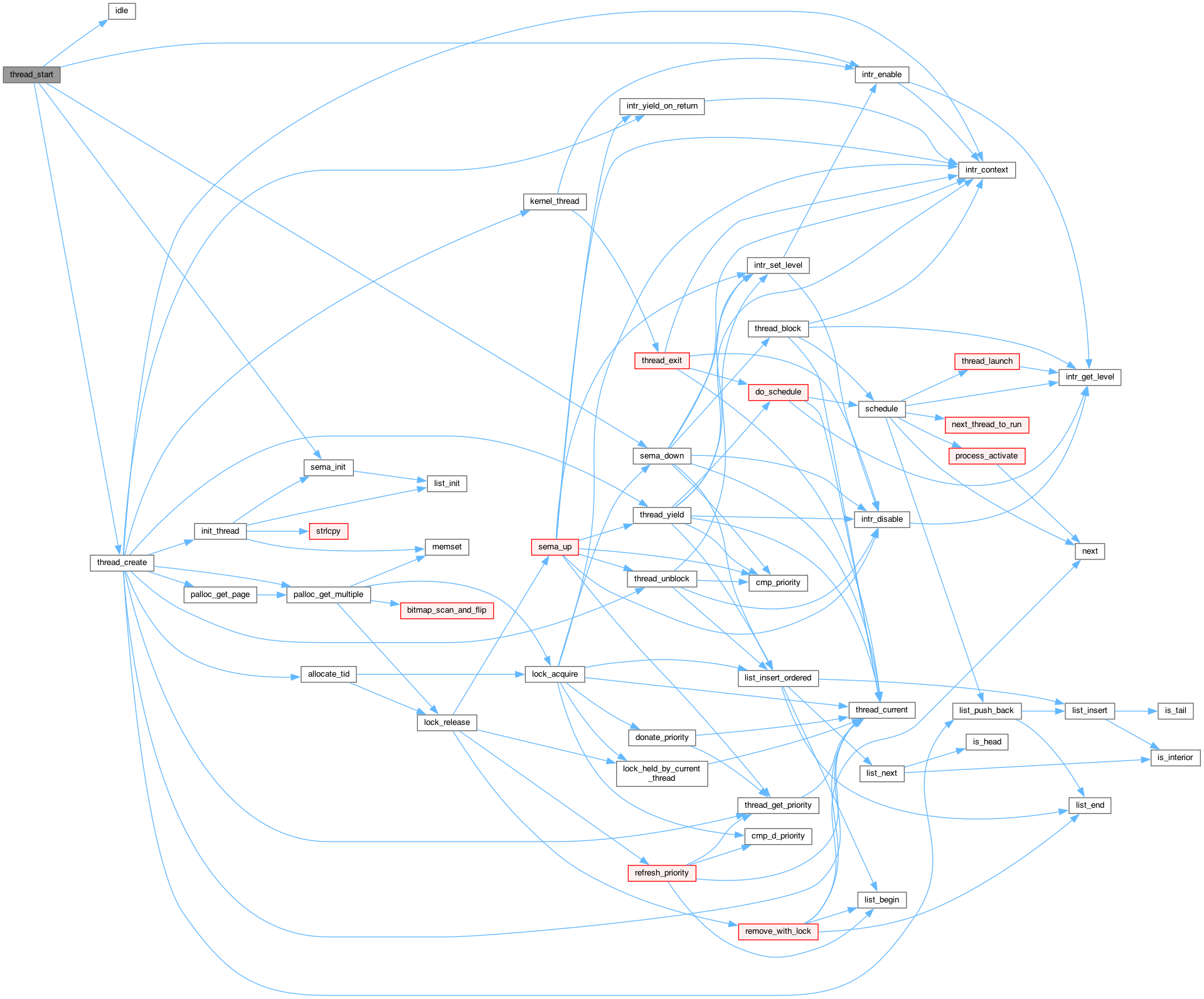

Here is the call graph for this function:

Here is the caller graph for this function:

thread_tick()

void thread_tick

(

void

)

                   {
    struct thread *t = thread_current ();

    /* Update statistics. */
    if (t == idle_thread)
        idle_ticks++;
#ifdef USERPROG
    else if (t->pml4 != NULL)
        user_ticks++;
#endif
    else
        kernel_ticks++;

    /* Enforce preemption. */
    if (++thread_ticks >= TIME_SLICE)
        intr_yield_on_return ();
}

Here is the call graph for this function:

Here is the caller graph for this function:

thread_tid()

tid_t thread_tid

(

void

)

                  {
    return thread_current ()->tid;
}

Here is the call graph for this function:

thread_unblock()

void thread_unblock

(

struct thread *

t

)

                                  {
    enum intr_level old_level;

    ASSERT (is_thread (t));

    old_level = intr_disable ();
    ASSERT (t->status == THREAD_BLOCKED);
    /*------------------------- [P1] Priority Scheduling --------------------------*/
    /* origin code
    list_push_back (&ready_list, &t->elem);
    */
    list_insert_ordered(&ready_list, &t -> elem, cmp_priority, NULL); // 정렬된 상태로 스레드가 삽입되도록 한다.
    t->status = THREAD_READY;
    intr_set_level (old_level);
}

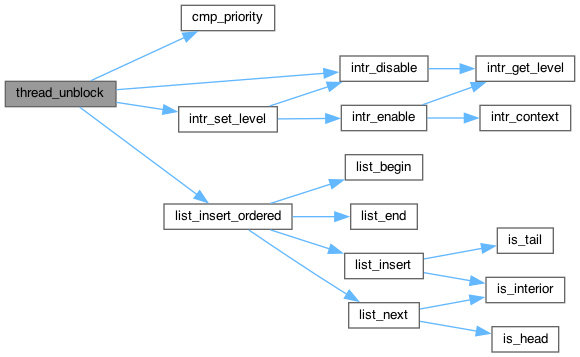

Here is the call graph for this function:

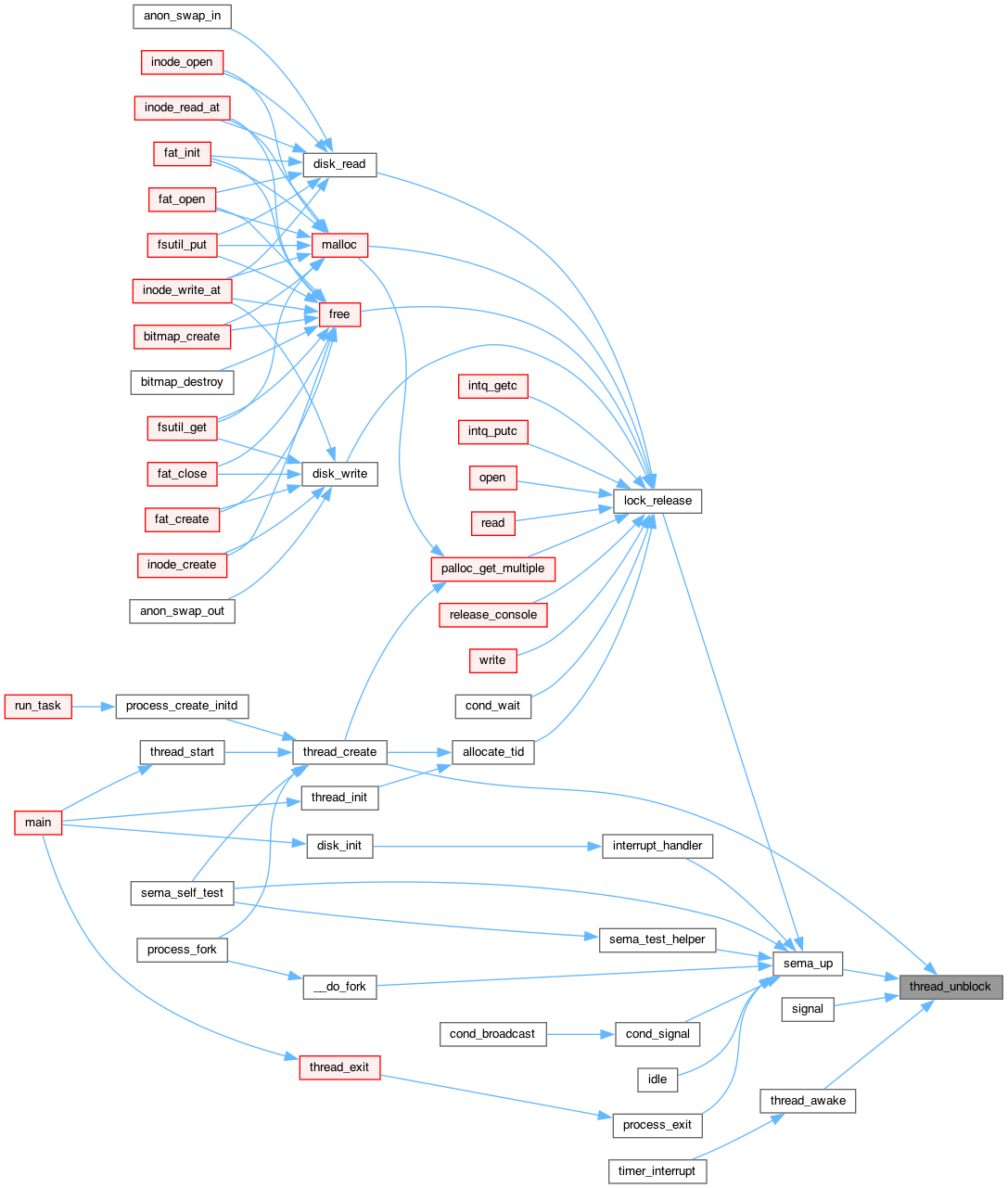

Here is the caller graph for this function:

thread_yield()

void thread_yield

(

void

)

                    {
    struct thread *curr = thread_current (); // 현재 스레드의 포인터
    enum intr_level old_level;

    ASSERT (!intr_context ());

    old_level = intr_disable (); // 인터럽터를 비활성화한다.
    if (curr != idle_thread) { // 현재 스레드가 유휴 스레드가 아니면 리스트의 맨 뒤로 넣는다.
        /*------------------------- [P1] Alarm Clock --------------------------*/
        /* origin code
        list_push_back (&ready_list, &curr->elem); // 현재 스레드를 레디리스트의 맨 뒤로 삽입한다.
        */
        /*------------------------- [P1] Priority Scheduling --------------------------*/
        list_insert_ordered(&ready_list, &curr -> elem, cmp_priority, NULL); // 정렬된 상태로 스레드가 삽입되도록 한다.
    }
    do_schedule (THREAD_READY); // ready 상태로 전환하고 컨텍스트 스위칭을 한다.
    intr_set_level (old_level); // 이후 다시 이전 상태로 되돌린다.
}

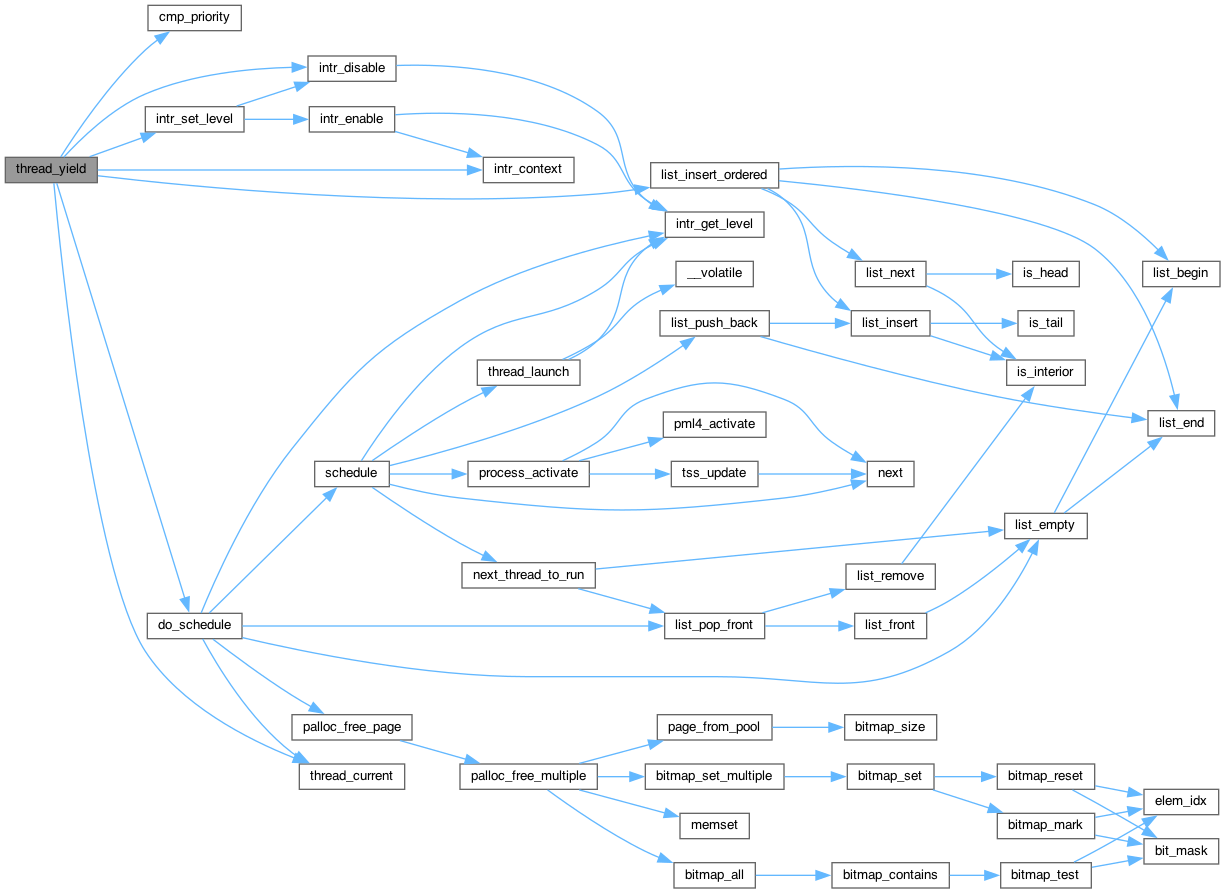

Here is the call graph for this function:

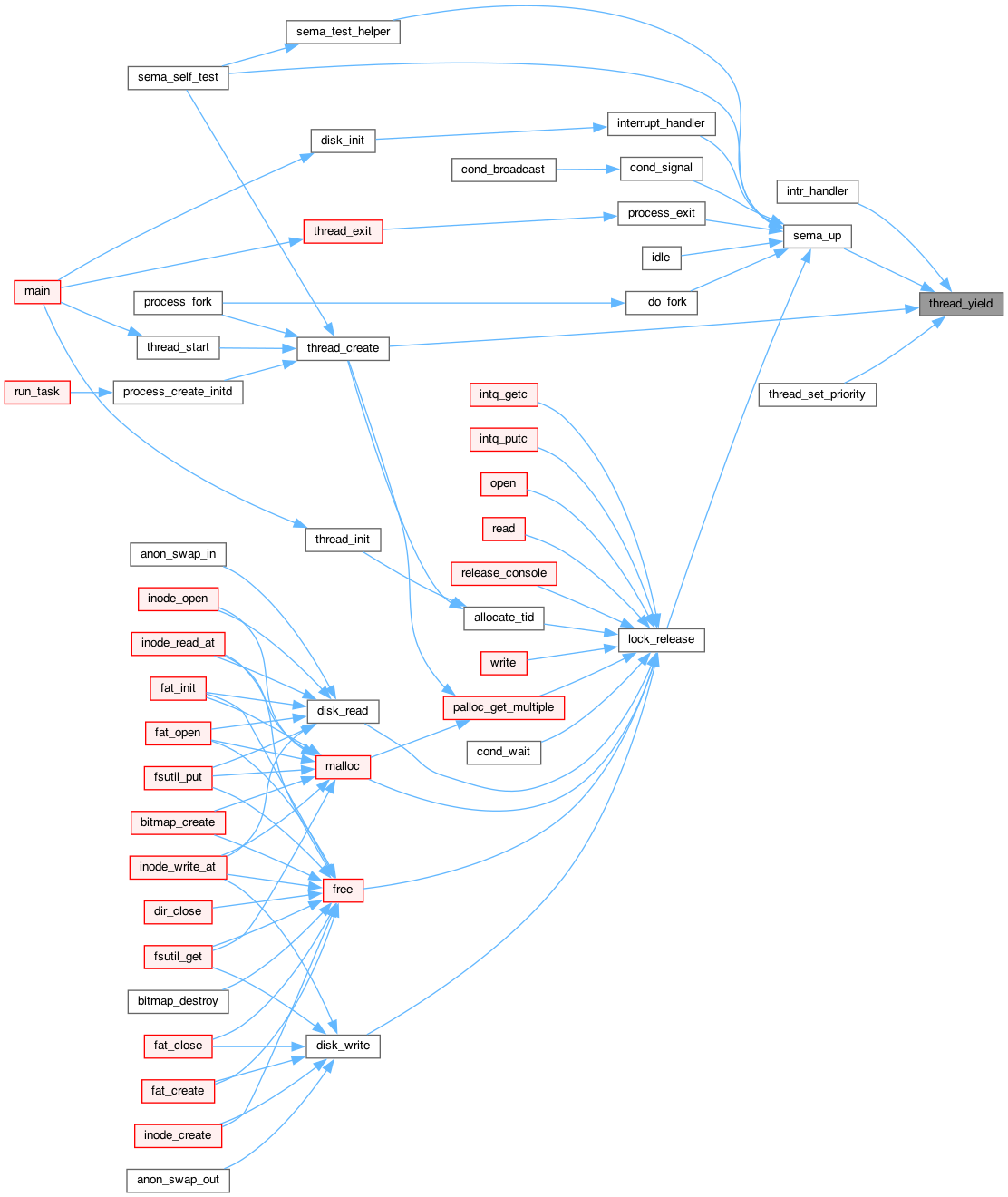

Here is the caller graph for this function:

Variable Documentation

thread_mlfqs

bool thread_mlfqs

extern
