timer.h File Reference

#include <round.h>
#include <stdint.h>

Include dependency graph for timer.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	TIMER_FREQ   100

Functions
void	timer_init (void)
void	timer_calibrate (void)
int64_t	timer_ticks (void)
int64_t	timer_elapsed (int64_t)
void	timer_sleep (int64_t ticks)
void	timer_msleep (int64_t milliseconds)
void	timer_usleep (int64_t microseconds)
void	timer_nsleep (int64_t nanoseconds)
void	timer_print_stats (void)

Macro Definition Documentation

TIMER_FREQ

#define TIMER_FREQ   100

Function Documentation

timer_calibrate()

void timer_calibrate

(

void

)

                       {
    unsigned high_bit, test_bit;

    ASSERT (intr_get_level () == INTR_ON);
    printf ("Calibrating timer...  ");

    /* Approximate loops_per_tick as the largest power-of-two
       still less than one timer tick. */
    loops_per_tick = 1u << 10;
    while (!too_many_loops (loops_per_tick << 1)) {
        loops_per_tick <<= 1;
        ASSERT (loops_per_tick != 0);
    }

    /* Refine the next 8 bits of loops_per_tick. */
    high_bit = loops_per_tick;
    for (test_bit = high_bit >> 1; test_bit != high_bit >> 10; test_bit >>= 1)
        if (!too_many_loops (high_bit | test_bit))
            loops_per_tick |= test_bit;

    printf ("%'"PRIu64" loops/s.\n", (uint64_t) loops_per_tick * TIMER_FREQ);
}

Here is the call graph for this function:

Here is the caller graph for this function:

timer_elapsed()

int64_t timer_elapsed

(

int64_t

then

)

                             {
    return timer_ticks () - then;
}

Here is the call graph for this function:

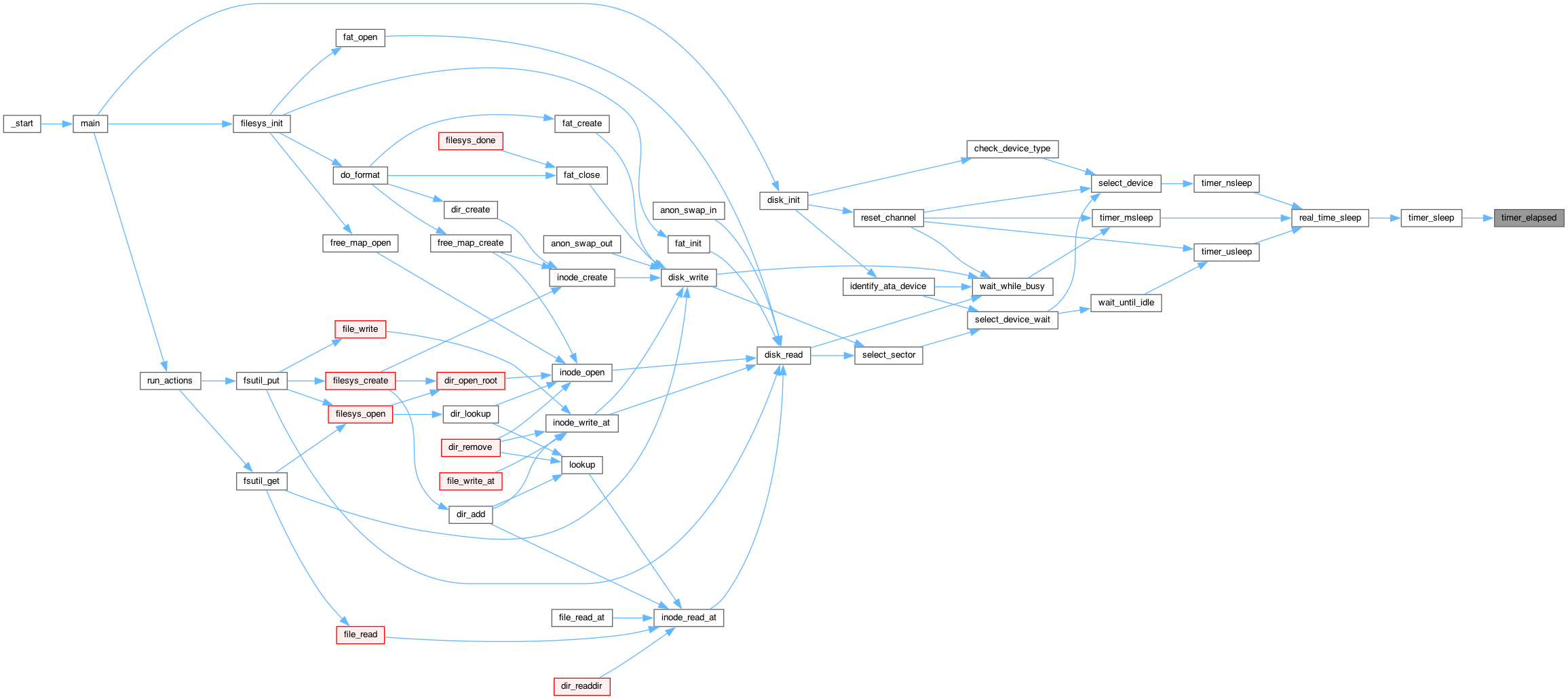

Here is the caller graph for this function:

timer_init()

void timer_init

(

void

)

                  {
    /* 8254 input frequency divided by TIMER_FREQ, rounded to
       nearest. */
    uint16_t count = (1193180 + TIMER_FREQ / 2) / TIMER_FREQ;

    outb (0x43, 0x34);    /* CW: counter 0, LSB then MSB, mode 2, binary. */
    outb (0x40, count & 0xff);
    outb (0x40, count >> 8);

    intr_register_ext (0x20, timer_interrupt, "8254 Timer");
}

Here is the call graph for this function:

Here is the caller graph for this function:

timer_msleep()

void timer_msleep

(

int64_t

milliseconds

)

                          {
    real_time_sleep (ms, 1000);
}

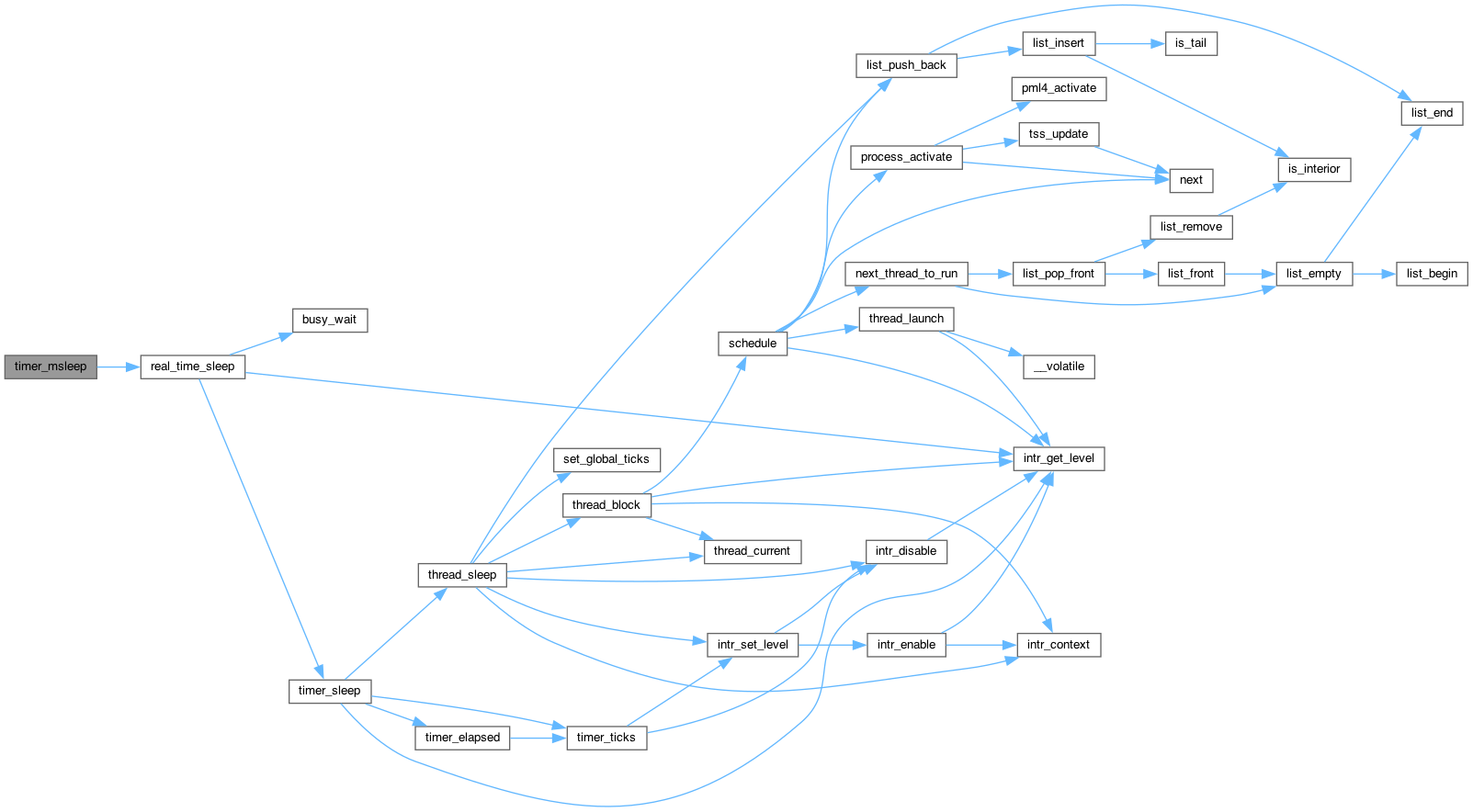

Here is the call graph for this function:

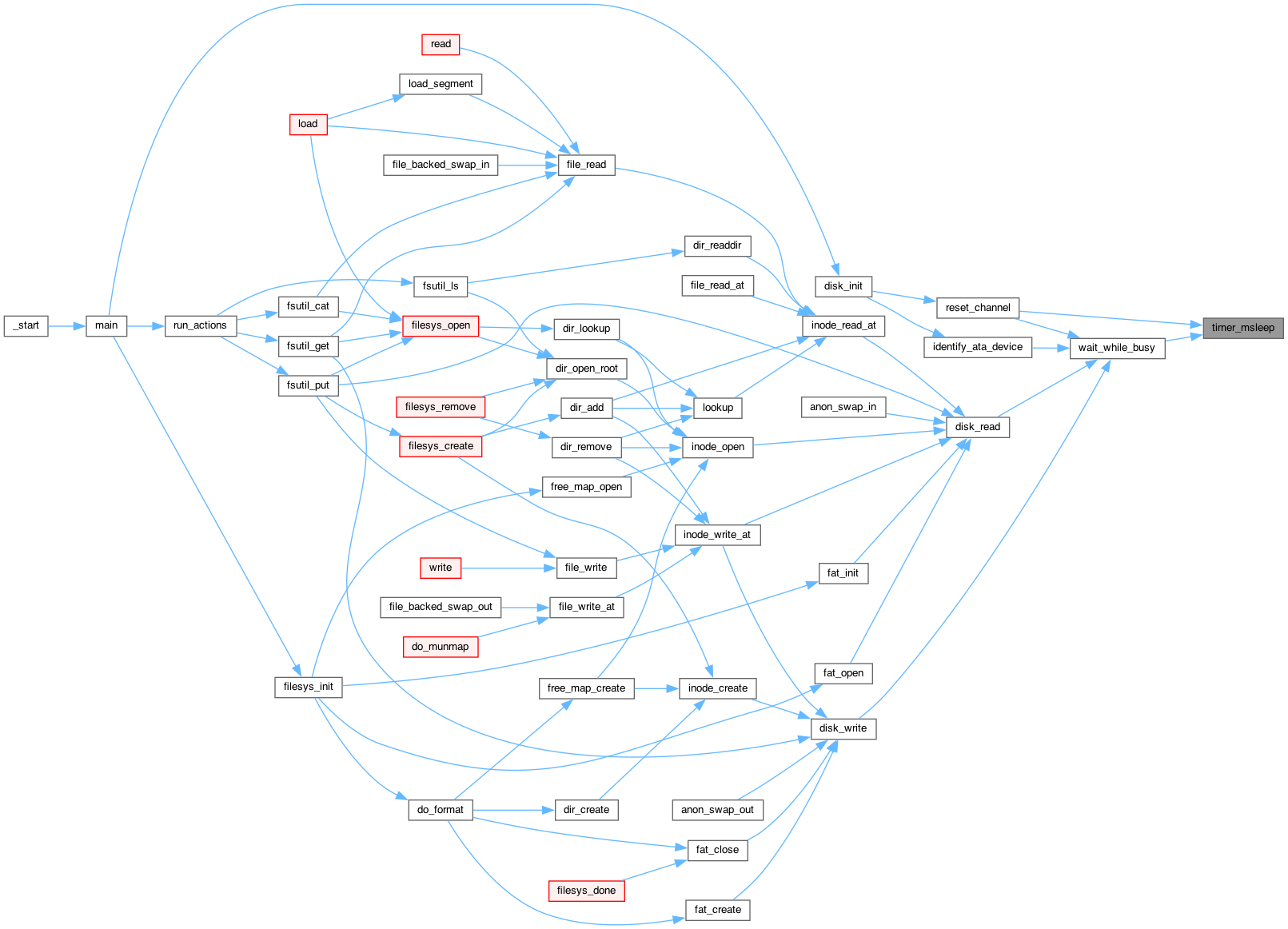

Here is the caller graph for this function:

timer_nsleep()

void timer_nsleep

(

int64_t

nanoseconds

)

                          {
    real_time_sleep (ns, 1000 * 1000 * 1000);
}

Here is the call graph for this function:

Here is the caller graph for this function:

timer_print_stats()

void timer_print_stats

(

void

)

                         {
    printf ("Timer: %"PRId64" ticks\n", timer_ticks ());
}

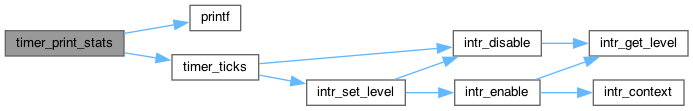

Here is the call graph for this function:

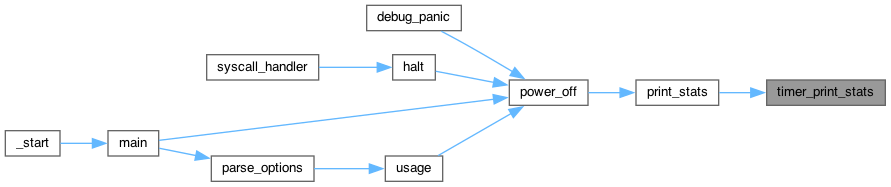

Here is the caller graph for this function:

timer_sleep()

void timer_sleep

(

int64_t

ticks

)

                            { // ticks 시간 만큼 뒤에 꺠어난다.(상대 시간 (eg. 5분))
    int64_t start = timer_ticks (); // 현재 시간(프로그램 부트 이후 시간 (eg. 12시))

    ASSERT (intr_get_level () == INTR_ON);
    /* 기존 코드 : busy waiting 방식
        while (timer_elapsed (start) < ticks)
            thread_yield ();
    */
    if (timer_elapsed (start) < ticks) // 현재 시간부터의 경과 시간이 ticks 보다 작으면(깨울 때가 아님)
        thread_sleep(start + ticks); // 해당 스레드를 sleep(BLOCKED)시킨다.
        // ↳ 해당 스레드가 깨어나야할 절대 시간인 (start + ticks)를 인자로 넘긴다.
}

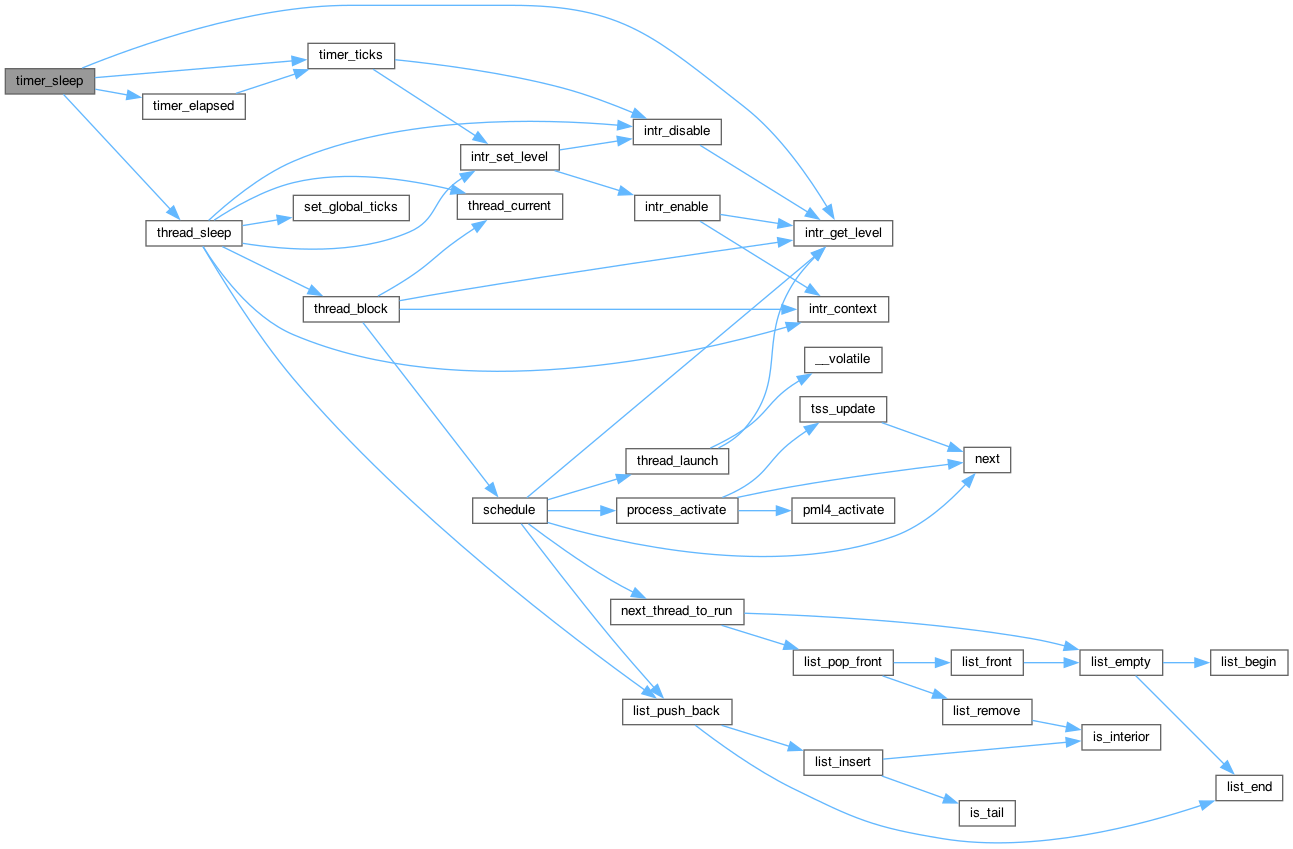

Here is the call graph for this function:

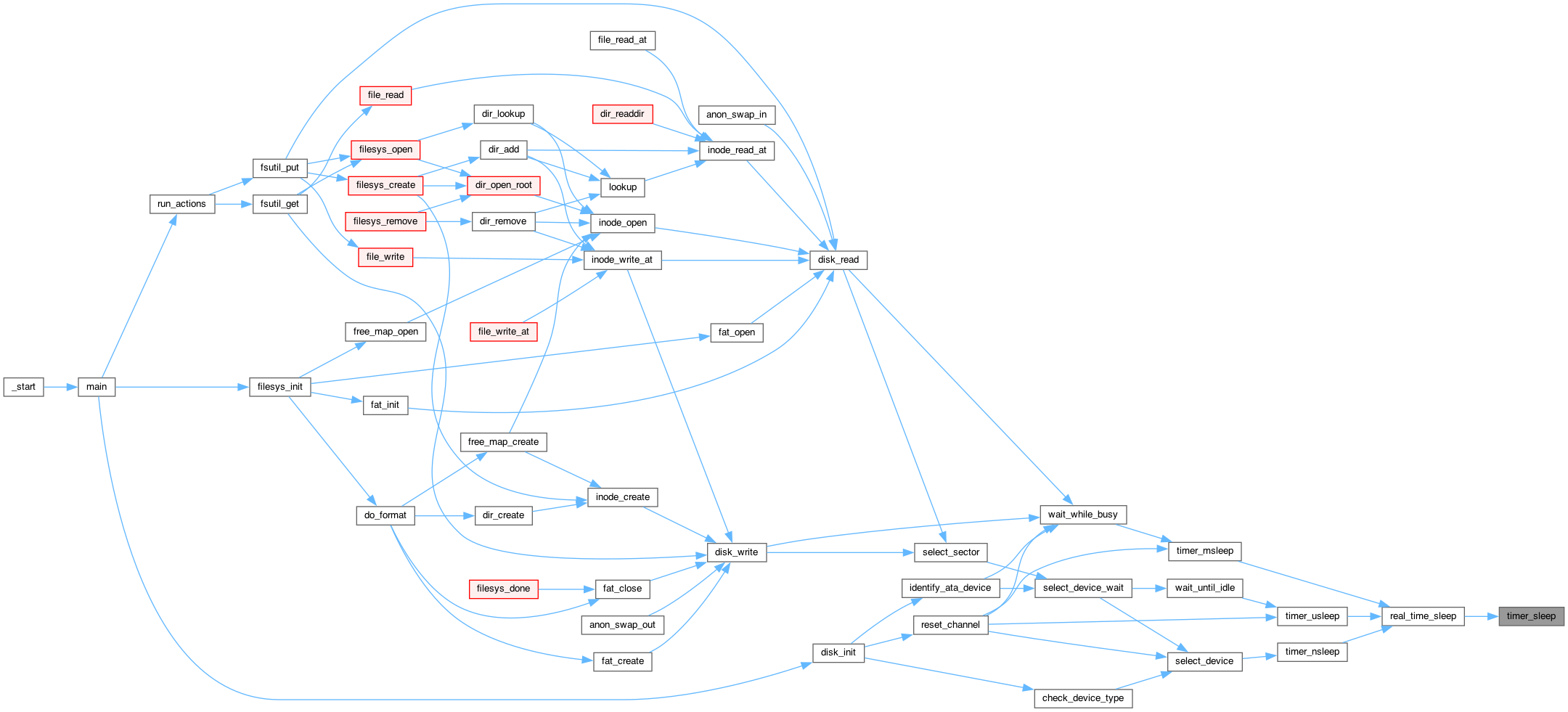

Here is the caller graph for this function:

timer_ticks()

int64_t timer_ticks

(

void

)

                   {
    enum intr_level old_level = intr_disable ();
    int64_t t = ticks;
    intr_set_level (old_level);
    barrier ();
    return t;
}

Here is the call graph for this function:

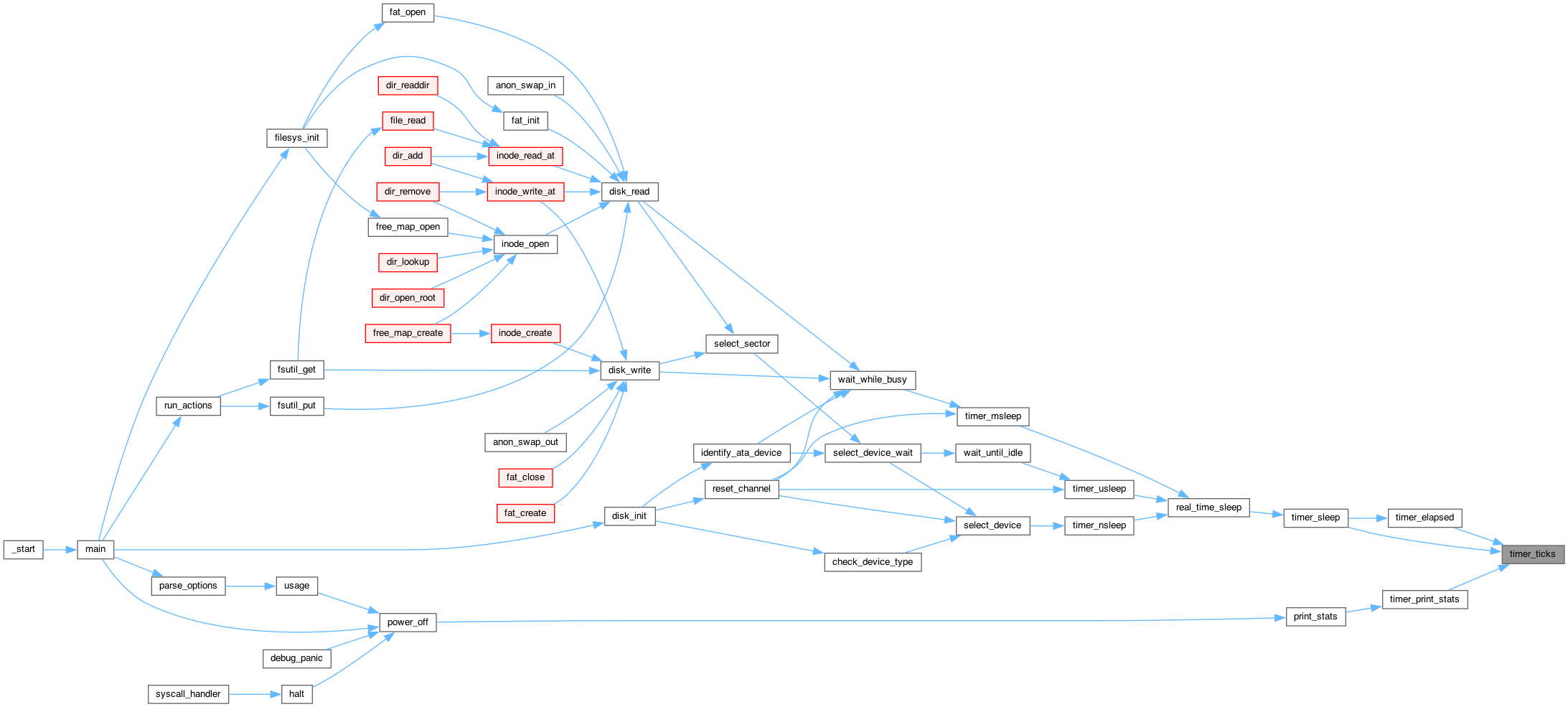

Here is the caller graph for this function:

timer_usleep()

void timer_usleep

(

int64_t

microseconds

)

                          {
    real_time_sleep (us, 1000 * 1000);
}

Here is the call graph for this function:

Here is the caller graph for this function:
